Tri Axle 50 Ton Livestock Trailer

Tri Axle 50 Ton Livestock Trailer Price: 10500USD

The Livestock trailer frame is produced with 6 Carlins, which not only makes the trailer's frame stronger, but the platform never sags.

The main beam of the livestock trailer is made of Q345 high-strength steel, which has a stronger bearing capacity and a service life of more than 10 years.

Tri Axle 50 Ton Livestock Trailer Price for Sale Near Me

Tri Axle 50 Ton Livestock Trailer Price for Sale Near Me

Tri Axle 50 Ton Livestock Trailer Price for Sale Near Me

Tri Axle 50 Ton Livestock Trailer Price for Sale Near Me

Livestock Trailer Specifications:

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

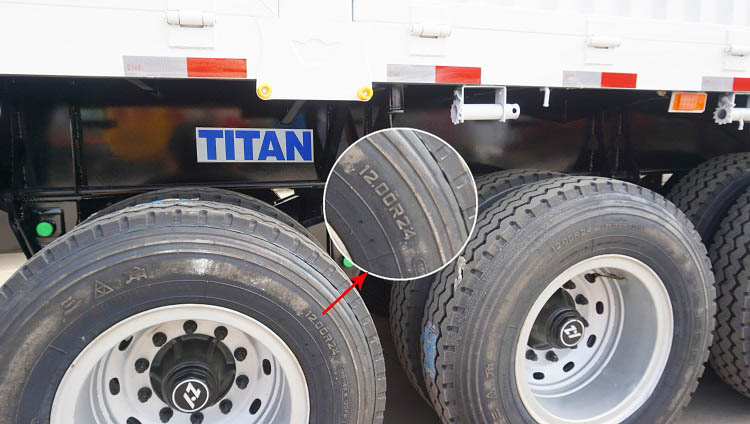

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12

King Pin: JOST brand 2.0 or 3.5 inch

Livestock Trailer Landing Gear: JOST brand D200T or Chinese brand 28tons

Livestock TrailerMain Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package of Livestock Trailer

Many customers use container shipping, which has low shipping cost and short transit time.

Some customers are bulk carriers or ro-ro ships. TITAN livestock trailer sold are waxed and covered with tarpaulins while the livestock trailer use bulk.

Fill out the below Email and WhatsApp. We will send you the latest quotation and catalog.
