60 Ton fence semi trailer middle plate is 500mm high and 8mm thick; the upper plate is 14mm thick and 140mm wide; the lower plate is 16mm thick and 140mm wide.
The 60 Ton fence semi trailer bottom plate of the gooseneck part is also reinforced with double-layer plates. All parts of the 60 Ton fence semi trailer are shot peened to enhance paint adhesion and painted before assembly to make the main beam stronger and more durable.

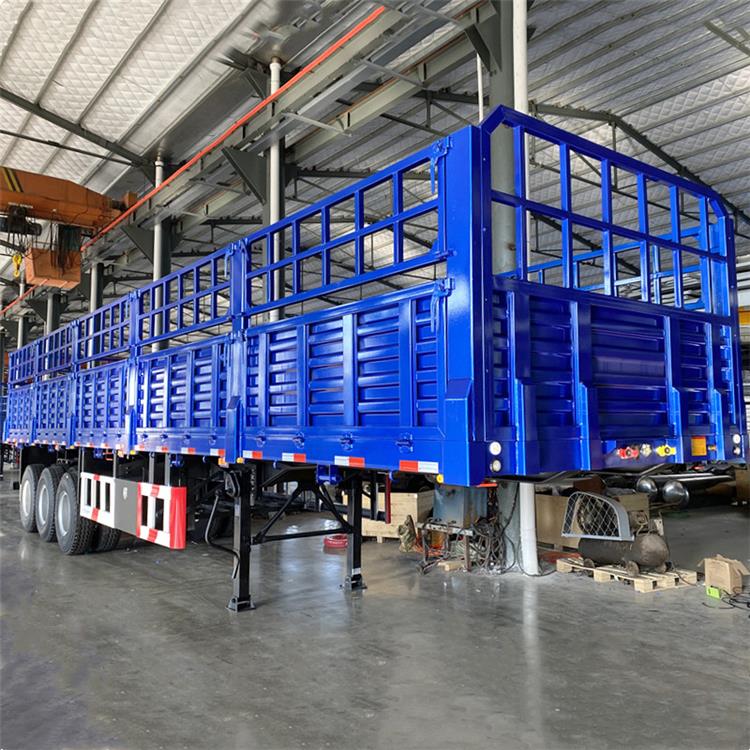

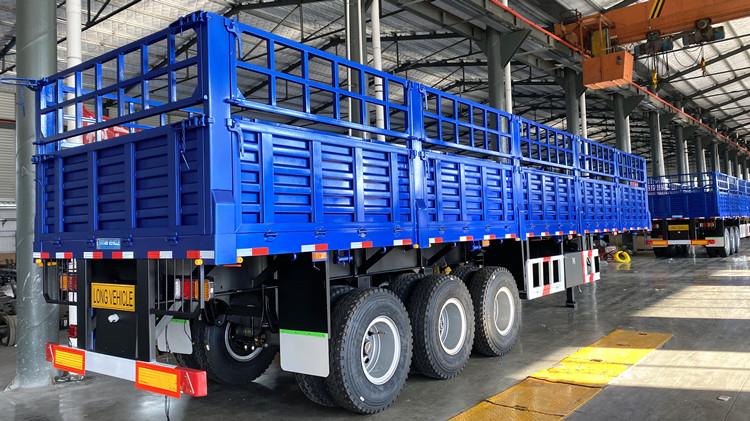

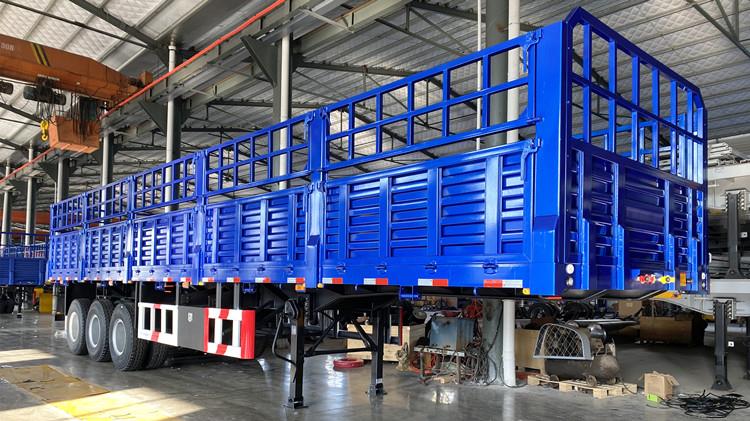

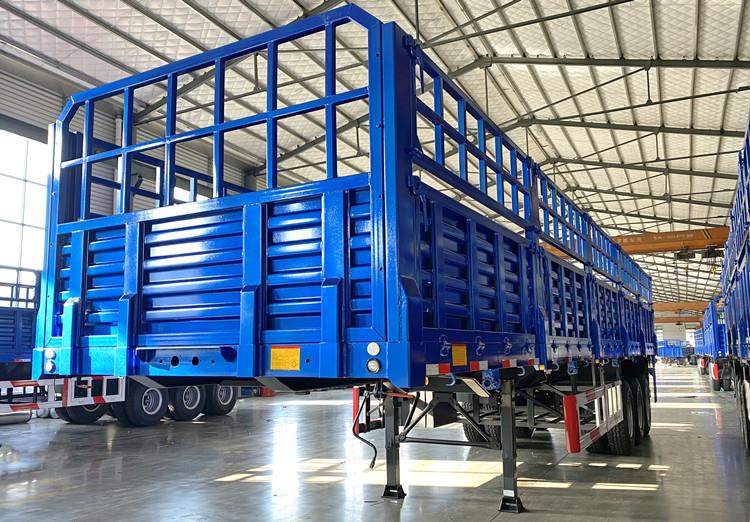

60 Ton Fence Semi Trailer for Sale in Nigeria Lagos
60 Ton Fence Semi Trailer for Sale in Nigeria Lagos
60 Ton Fence Semi Trailer for Sale in Nigeria Lagos

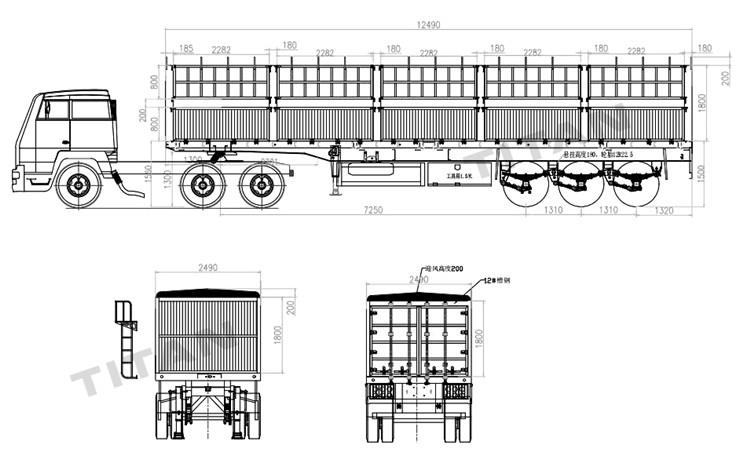

Dimension(mm): 12490x2490x3500mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Fence semi trailer can be transported in containers, the delivery time of container transport is short, and customers can receive the goods faster. Container shipping guarantees that the customer receives the product in perfect condition.

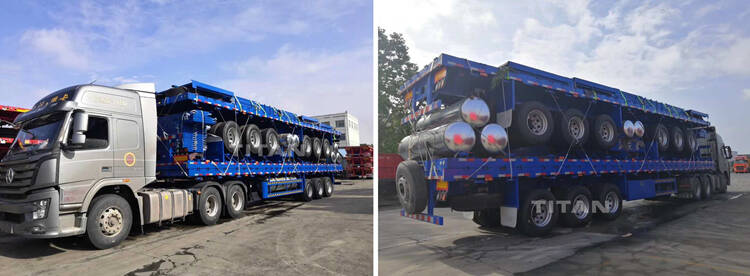

If the customer insists on bulk transportation, we will spray a thick layer of wax on the trailer. After spraying the wax, we will wrap the body with a rain cloth to reduce the 60 ton fence semi trailer being eroded by sea water during transportation.
Fill out the below Email and WhatsApp. We will send you the latest quotation and catalog.
