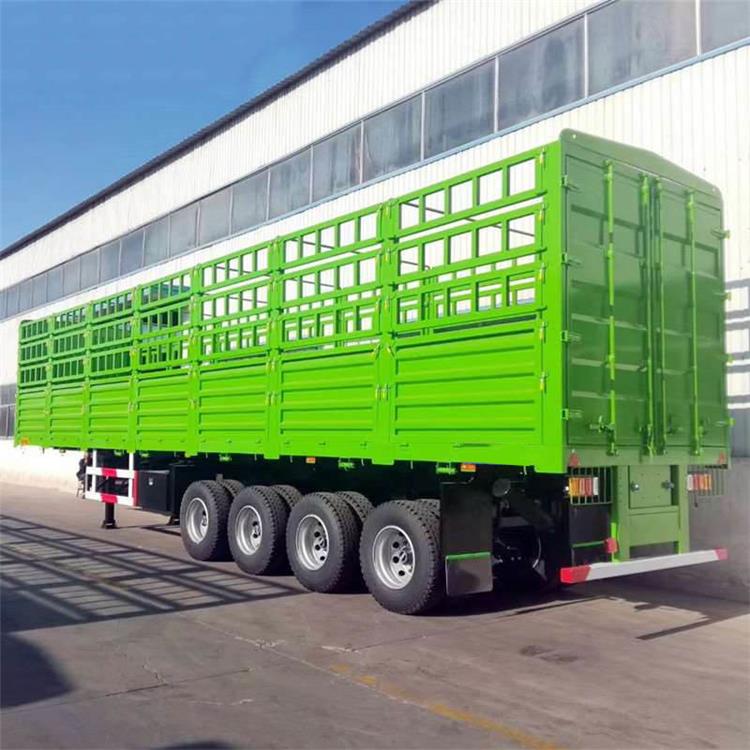

Stake trailer front and rear arcs and front ladder are optional accessories, the door can be equipped with outer lock lever and outer half lock lever, or built-in lock lever and built-in lock lever.
The material of the side device is Q345, the connection with the Stake traile is bolted, and the height of the rear protection section is 500mm from the ground.

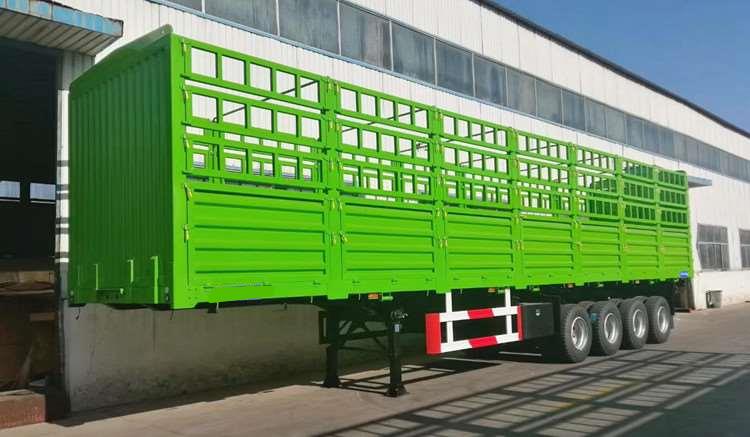

Stake Trailer for Sale | Animal Transport Trailer for Sale
Stake Trailer for Sale | Animal Transport Trailer for Sale
Stake Trailer for Sale | Animal Transport Trailer for Sale
Dimension(mm): 13000x2600x3420mm
Trailer Sides: 1800mm
Animal Transport Trailer Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Animal Transport Trailer Loading capacity(ton): 60T-80T

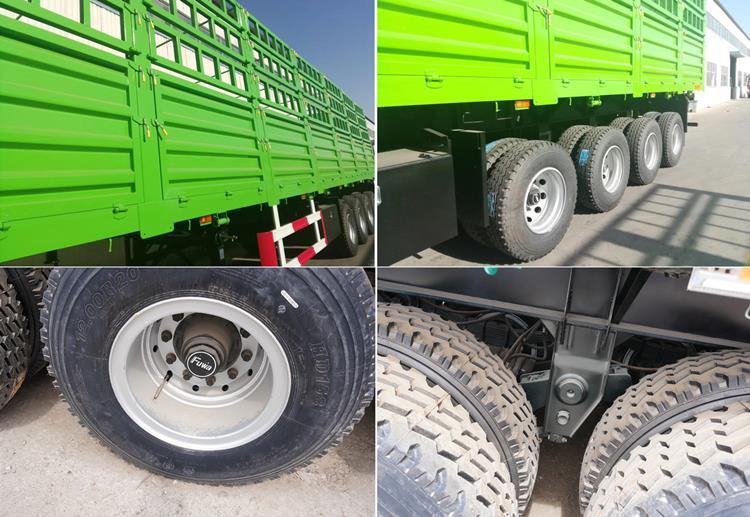

Axles: 4 axles, 13T/16T ,FUWA/ BPW
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Animal Transport Trailer Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Animal Transport Trailer Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
The Animal transport trailer uses an epoxy coating and an acrylic topcoat finish. Durable and rust-resistant, it supports longer aesthetics and service life.
Submerged arc automatic welding structure, key point reinforcement, targeted welding, according to experience to avoid some parts easy to miss welding, support Animal transport trailer longer working time, no maintenance.
Edge beams are produced from 160 mm thick steel.
