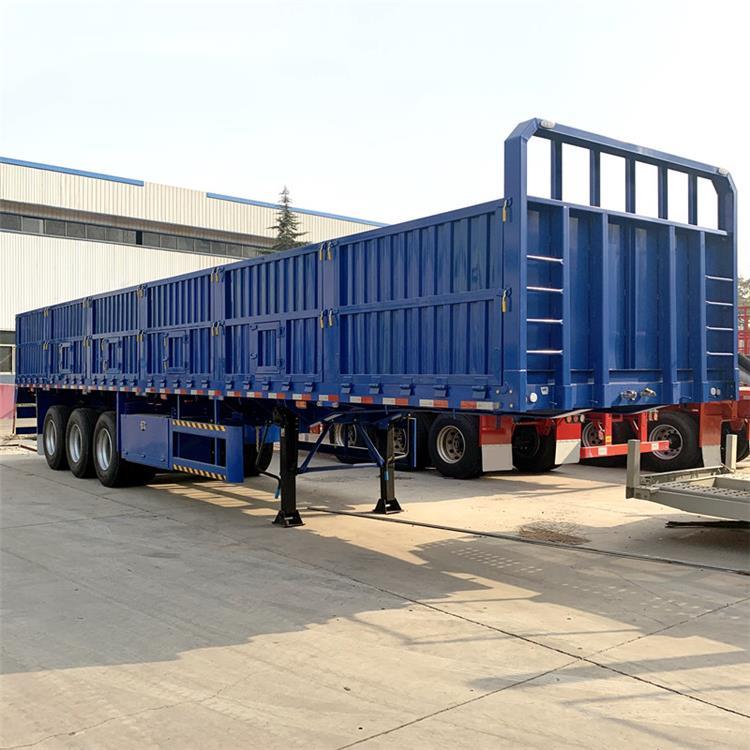

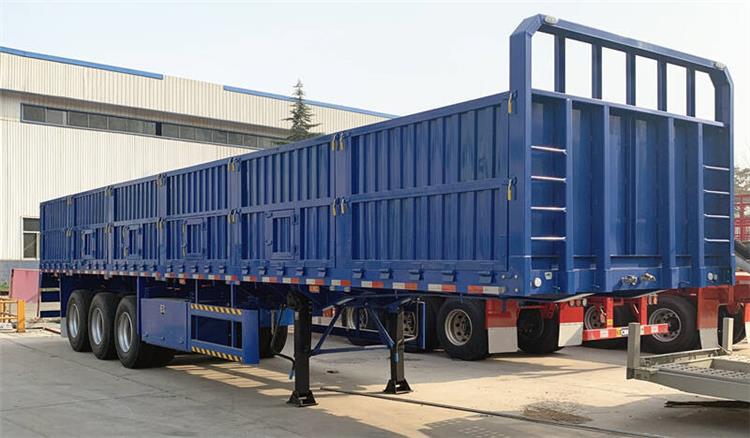

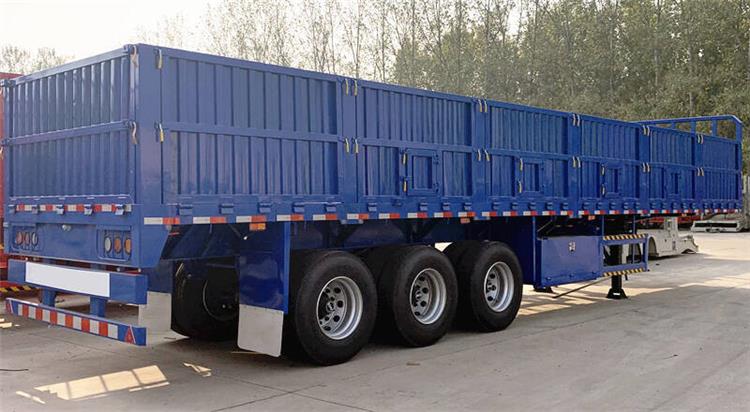

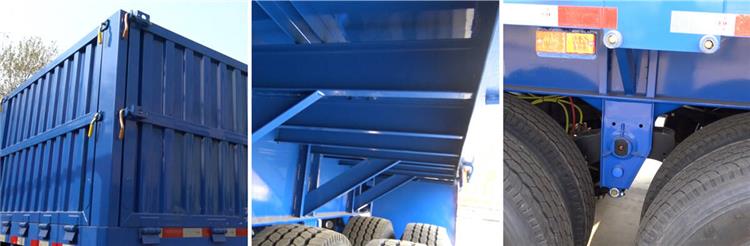

Tri Axle Sidewall Trailer

Tri Axle Sidewall Trailer Price: 10000USD

Side wall trailer has the characteristics of strong flexibility and complete functions, and its type and structure are gradually improving, and it also has absolute advantages.

Side wall trailer has the advantages of strong professionalism, large load capacity, fast transportation, convenient disassembly and assembly, wide application range and low investment cost, and has become the main equipment for road transportation. Driven by social and economic factors such as energy conservation and environmental protection, it has been rapidly developed and widely used.

Tri Axle Sidewall Trailer Price | Side Wall Semi Trailer

Tri Axle Sidewall Trailer Price | Side Wall Semi Trailer

Tri Axle Sidewall Trailer Price | Side Wall Semi Trailer

Sidewall Trailer Specifications:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Sidewall Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Sidewall Trailer Axles: 3 axles, 13T/16T ,FUWA/ BPW

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Sidewall Trailer Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

Side Wall Semi Trailer ABS: Optional

Light: LED light (specially intended for oversea market)

Side Wall Semi Trailer Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailor
