Tri axle 12m skeletal trailer are used exclusively to ship containers and dangerous goods tanks. The tri axle 12m skeletal trailer is widely used in modern logistics transport. It can be reused for a long time and has high strength.
The essential component of a tri axle skeletal trailer for sale is the main beam. The main beam is good or bad, seriously affects the service life of a tri axle skeletal trailer for sale. Generally, the main shaft is determined by steel.
Manganese steel compared to high-strength steel, its toughness is better if we load and transport heavy cargo, generally after the completion of unloading, basically can be restored to its original state.
Tri Axle 12m Skeletal Trailer for Sale | 40ft Skeleton Trailer for Sale
Tri Axle 12m Skeletal Trailer for Sale | 40ft Skeleton Trailer for Sale
Tri Axle 12m Skeletal Trailer for Sale | 40ft Skeleton Trailer for Sale
Tri Axle 12m Skeletal Trailer for Sale | 40ft Skeleton Trailer for Sale

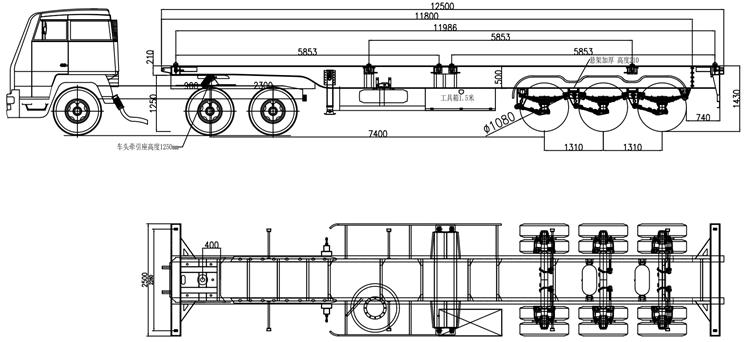

Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
