The 53 ft flatbed trailer for sale near me is carefully designed, its height and weighing capacity can safely transport the cargo from one place to another, load the cargo onto the 53 ft flatbed trailer for sale near me and transport it to the destination, and if it is necessary to change the flatbed truck trailer or ship or other means of transport in the middle, we do not need to take the cargo out of the container.
We need to determine the specifications of a semi truck flatbed trailer according to the different goods we transport
53 ft Flatbed Truck Trailer for Sale Near Me | Semi Truck Flatbed Trailer
53 ft Flatbed Truck Trailer for Sale Near Me | Semi Truck Flatbed Trailer
53 ft Flatbed Truck Trailer for Sale Near Me | Semi Truck Flatbed Trailer
Model: semi truck flatbed trailer

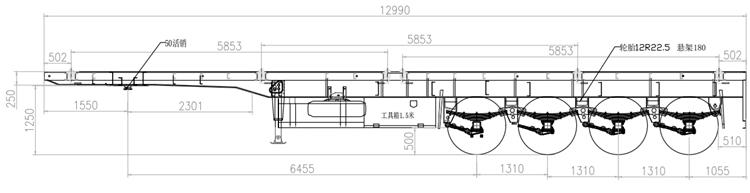

Dimension(mm): 14000x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) or Bogie Suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
