There are various specifications according to the transportation needs of different customers. We recommend suitable 40 ft shipping container trailers such as suspension model, axle number and brand, and paint color.
40 ft shipping container trailers are specially designed for shipping containers and dangerous goods tanks. 40 ft shipping container trailers are widely used in modern logistics transportation. It can be used repeatedly for a long time with high strength.
40 Ft container trailer for sale high strength Q345 or T700 steel material welded.Heavy duty mechanical suspension with equalizers quality spring.Dual line air brake system, T30/30 chamber and WABCO relay emergency valve, ABS and EBS system optional

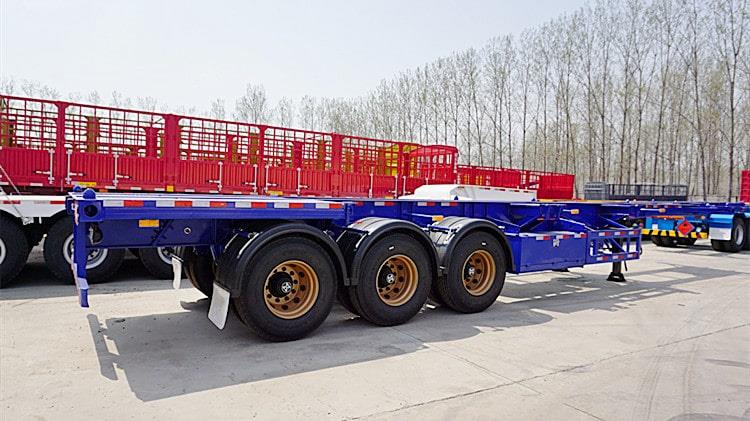

20 ft 40 ft Shipping Container Trailer for Sale In Nigeria

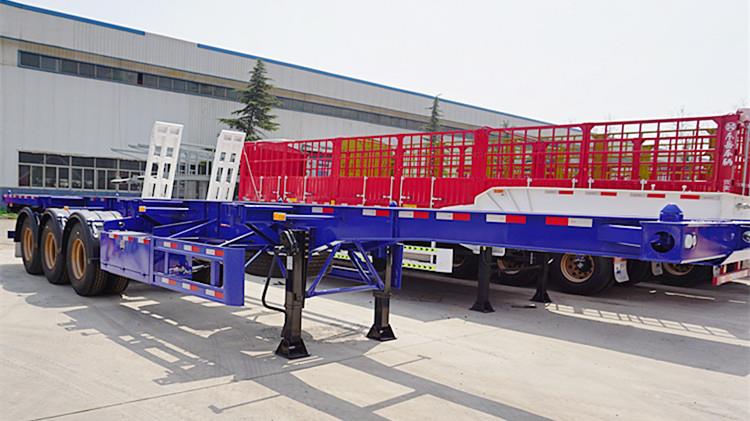

20 ft 40 ft Shipping Container Trailer for Sale In Nigeria

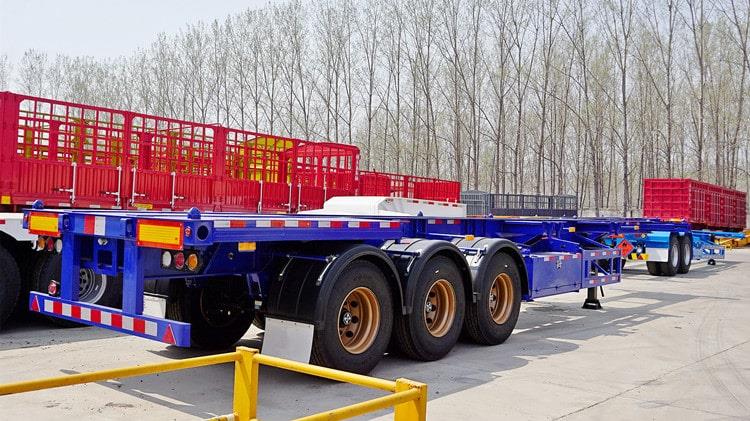

20 ft 40 ft Shipping Container Trailer for Sale In Nigeria
Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
