The 48 ft flatbed tractor traileris a kind of transportation equipment, which is mainly composed of steel structure of frame, and it is also divided into the lighting system, braking system, and walking system in terms of approach.
The on-board part of the 48 ft flatbed tractor trailer has no railings and is widely used for medium and long-distance cargo transportation, including bagged cargo, bulk cargo, containers, tanks, etc.
48 ft flatbed tractor trailer Its load capacity varies from 30 tons to 80 tons, the length of 48 ft flatbed tractor trailer can be determined according to the specific requirements of customers. Currently, 40 feet is the most widely used.

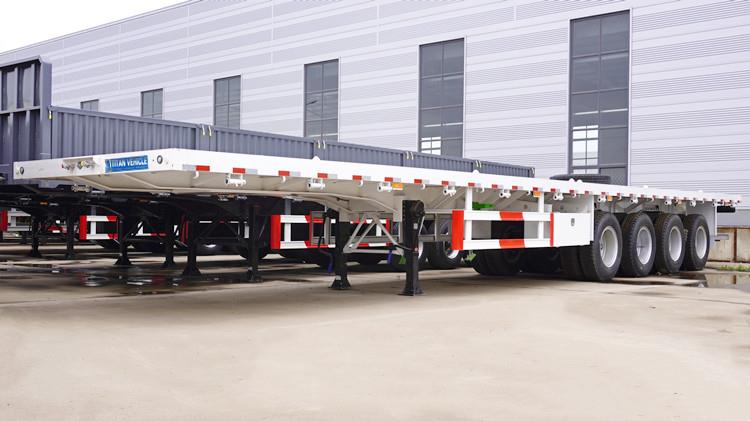

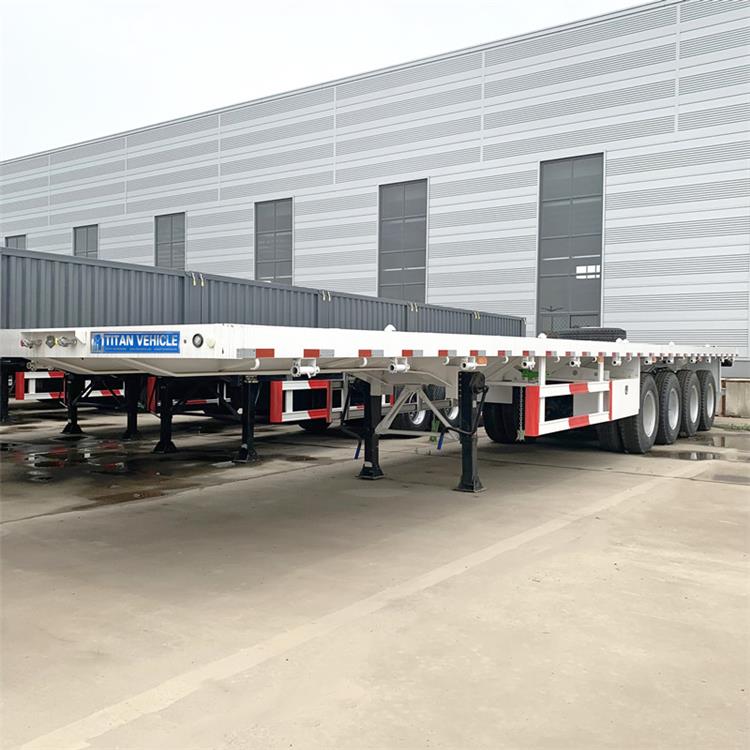

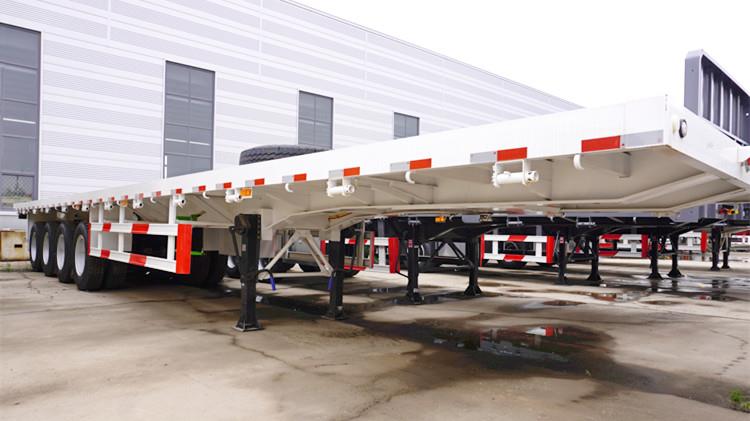

4 Axle 48 ft Flatbed Tractor Trailer for Sale in Kenya
4 Axle 48 ft Flatbed Tractor Trailer for Sale in Kenya
4 Axle 48 ft Flatbed Tractor Trailer for Sale in Kenya
Model: 48 ft flatbed trailer
Dimension(mm): 13500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

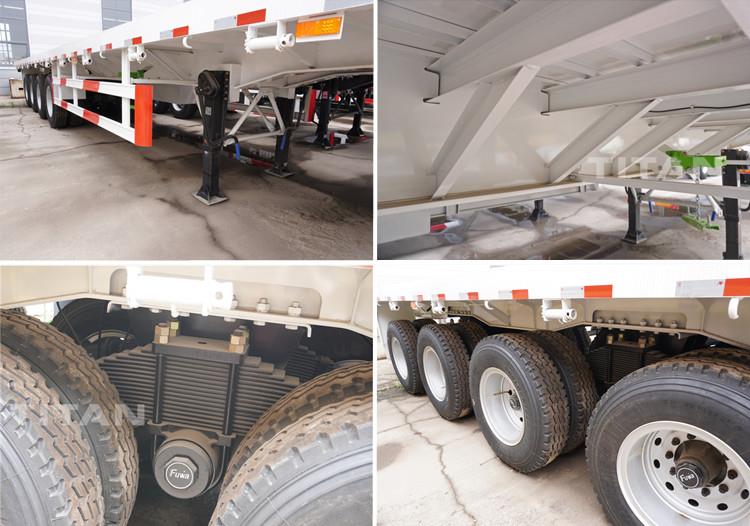

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) or Bogie Suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
