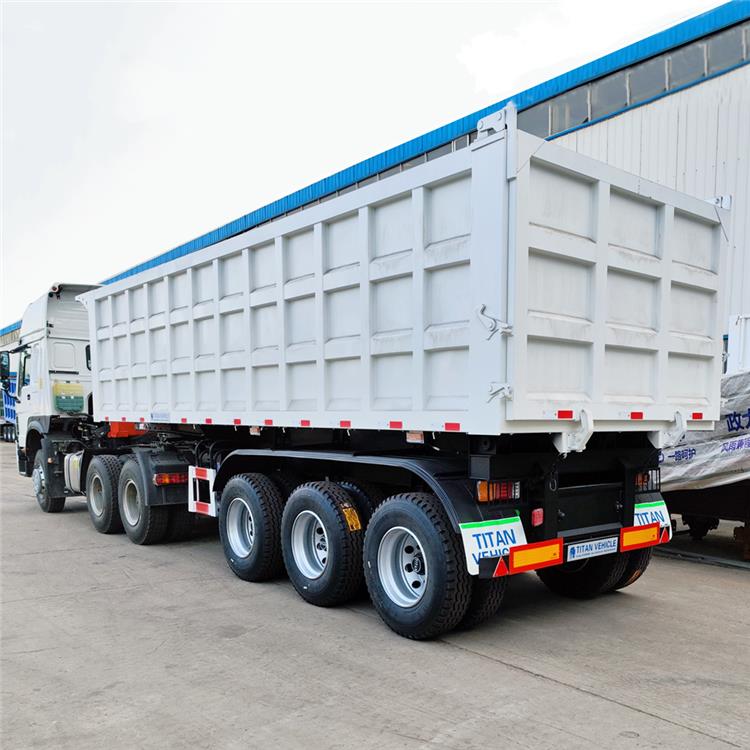

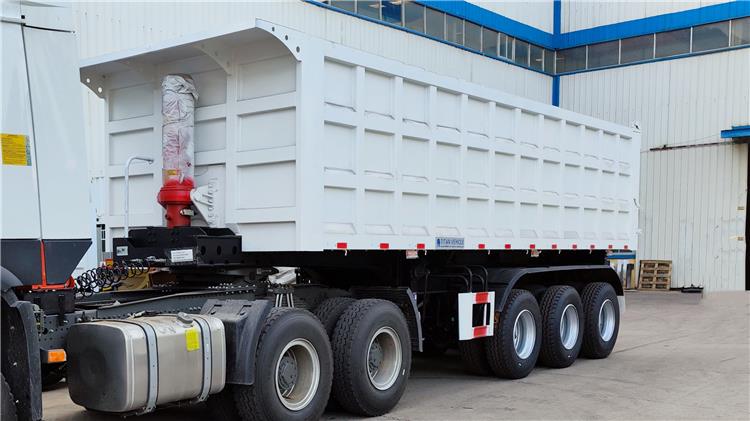

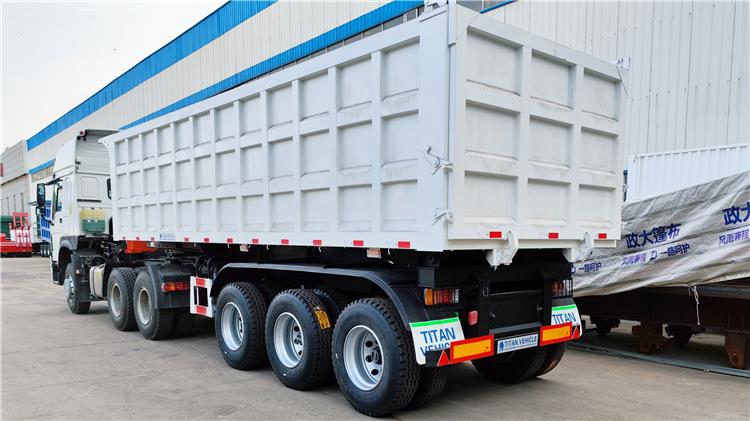

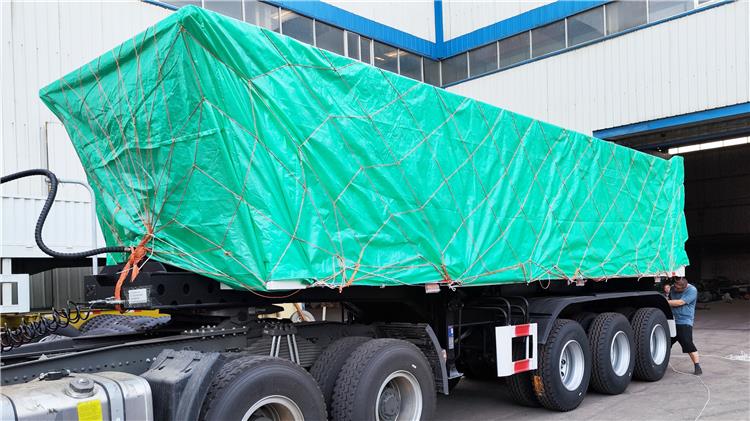

3 Axle Tipper Trailer

3 Axle Tipper Trailer

17900 USD

The tipper tipping trailer longitudinal beam is welded by automatic submerged arc welding, the frame is treated by shot blasting, and the cross beam of the chassis frame is welded through the longitudinal beam to form tipper tipping trailer with high structural strength.

SKU: 3 Axle Tipper Trailer
MPN: SHACMAN6603005
Brand: SHACMAN

Tipper Trailer Price: 17900USD

Tipper trailer price is made of high-quality steel, advanced technology and a strict production process. The whole vehicle has a reasonable structure, reliable performance, simple operation and beautiful appearance.

The accessories are all made of well-known domestic manufacturers and are purchased and inspected in strict accordance with the requirements of the quality system certification documents, which ensures the good performance of tipper trailer price.

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer



3 Axle Tipper Trailer for Sale Specifications:

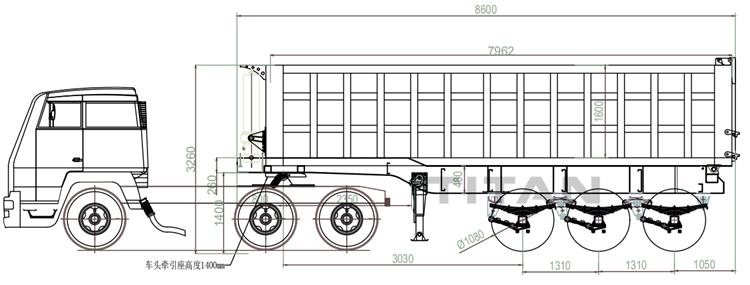

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam:

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

3 Axle Tipper Trailer for Sale  End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

3 Axle Tipper Trailer for Sale  Axle: 13T/16T, FUWA / BPW

Semi Dump Trailers Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

3 Axle Tipper Trailer for Sale  Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Tipper Trailer Price | 3 Axle Tipper Trailer for Sale | Tipper Tipping Trailer
