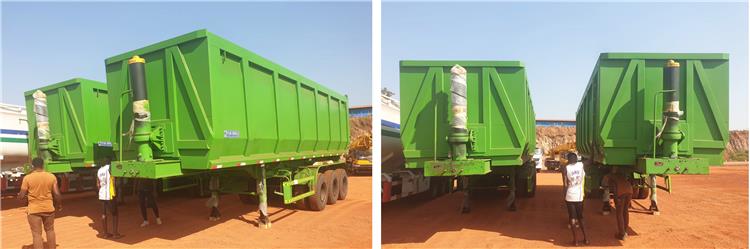

Rear dump semi trailer is exported to Africa, Myanmar for cement clinker, coal, construction gravel, debris, bauxite, manganese ore, etc.
Rear dump semi trailers are popular for their easy unloading and beautiful design. An extension board can also be designed at the rear of the Dumper trailer for sale. Dumper trailer for sale is more convenient and quicker when dumping to the conveyor.
Tipper dumper price steel has good heavy load resistance quality, and the spare parts cooperated with world famous brands including BPW, FUWA, WABCO, Triangle, Linglong, JOST, etc. ensure our tipper dumper price-quality.
Rear Dump Semi Trailer | Dumper Trailer for Sale | Tipper Dumper Price
Rear Dump Semi Trailer | Dumper Trailer for Sale | Tipper Dumper Price
Rear Dump Semi Trailer | Dumper Trailer for Sale | Tipper Dumper Price

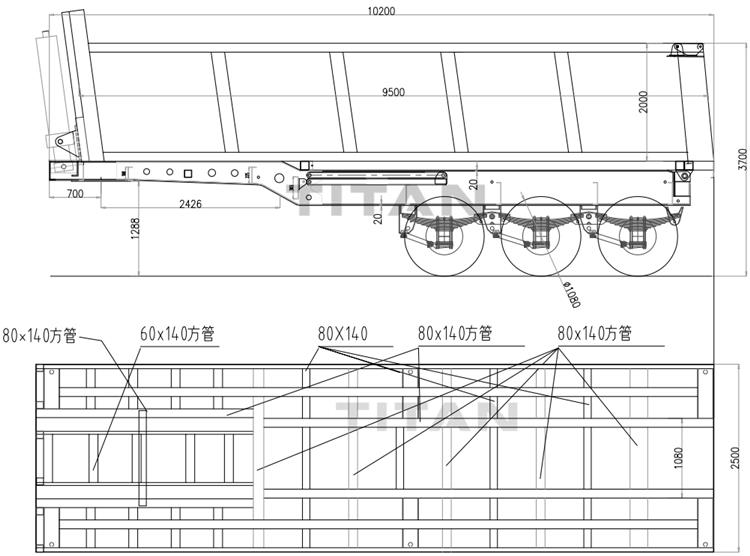

Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Dumper Trailer for Sale Total volume(m³): 35m³
Dumper Trailer for Sale End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW
Dumper Trailer for Sale Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Dumper Trailer for Sale ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
The high-quality chassis and suspension system make the tipper dumper price more loadable and can be applied to harsh roads.
Larger carrying capacity and better performance, higher reliability and longer service life, are well received by customers.
