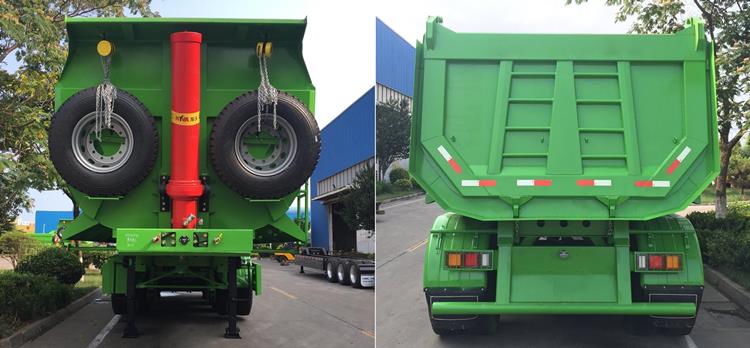

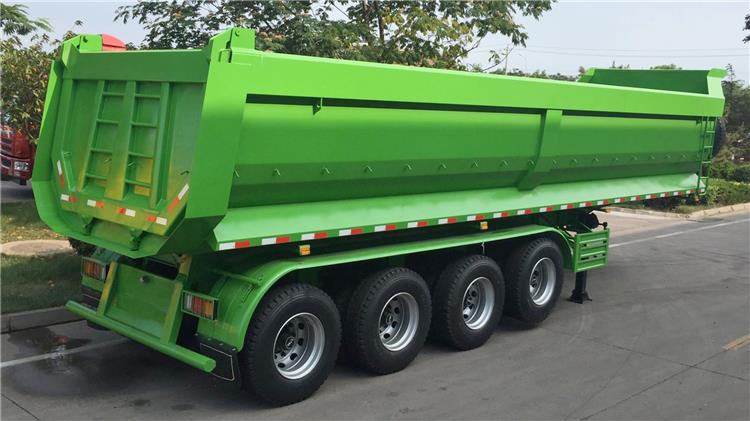

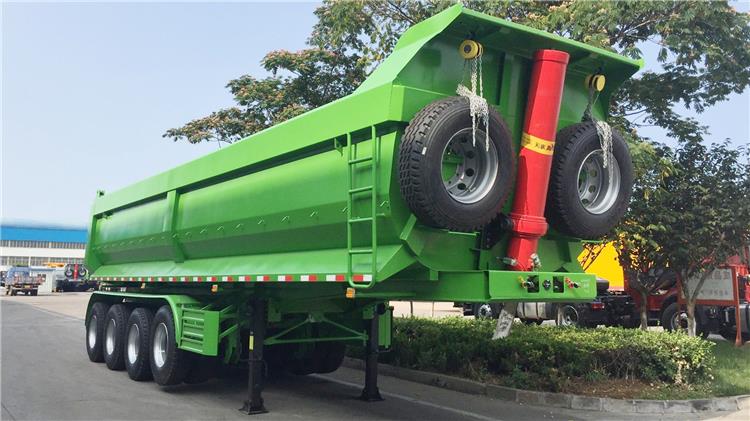

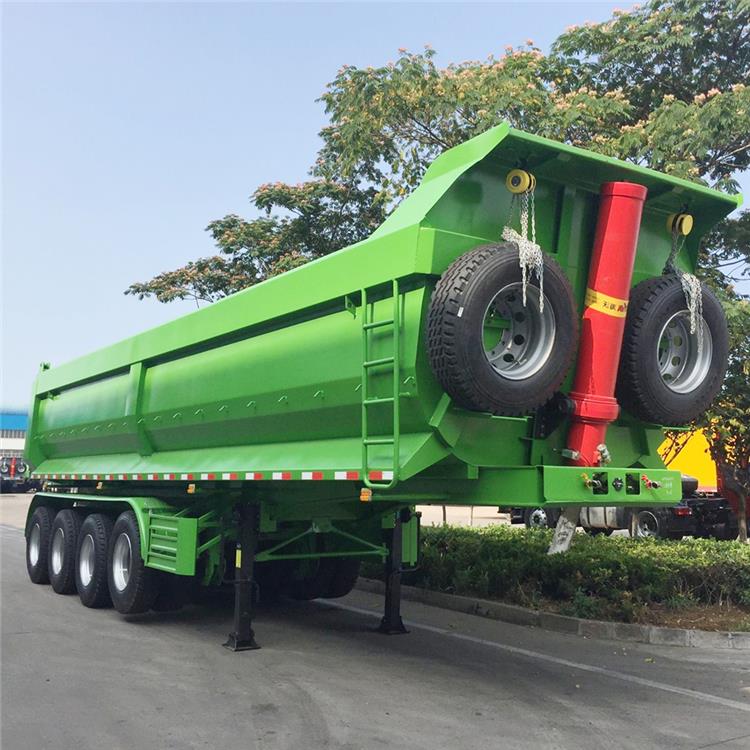

Semi tipper trailer for sale suspension is multi-reinforced, 10 mm thick and has a 70 mm diameter center pin, which enhances the stability of the semi tipper for sale.
Semi trailer tipper for sale reinforced by the center beam, it can flexibly cope with deformation and springs. Attachment brackets on the chassis side members will reduce stress by distributing the forces exerted by road conditions on the track pack.
Semi Tipper for Sale | Semi Trailer Tipper for Sale | Semi Tipper Trailer for Sale
Semi Tipper for Sale | Semi Trailer Tipper for Sale | Semi Tipper Trailer for Sale
Semi Tipper for Sale | Semi Trailer Tipper for Sale | Semi Tipper Trailer for Sale
Dimension: 9300mmx2500mm x3700mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume: 80 ton
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Toolbox: 1 set
