The main beam of our tipper semi trailer price. The height of the middle plate is 480 mm and adopts double 6+6 mm plate design. The upper plate is 14 mm and the bottom plate is 16 mm. The bottom of the cargo adopts multiple reinforcements, which makes the cargo more strong.
The cargo is reinforced by multiple stringer beams and never deforms. The tipper semi trailer price rear box plate uses 4 turn-over brackets, which makes the cargo more strong.
Hydraulic Tipper Trailer for Sale Near Me | Tipper Semi Trailer Price
Hydraulic Tipper Trailer for Sale Near Me | Tipper Semi Trailer Price

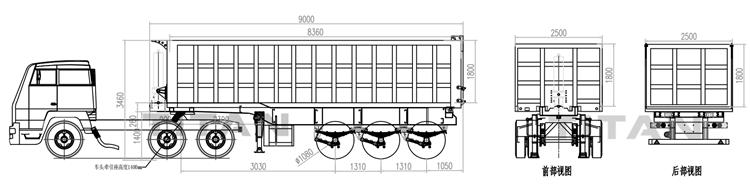

Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Hydraulic Tipper Trailer for Sale Total volume: 60ton
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW
Hydraulic Tipper Trailer for Sale Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Hydraulic Tipper Trailer for Sale ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

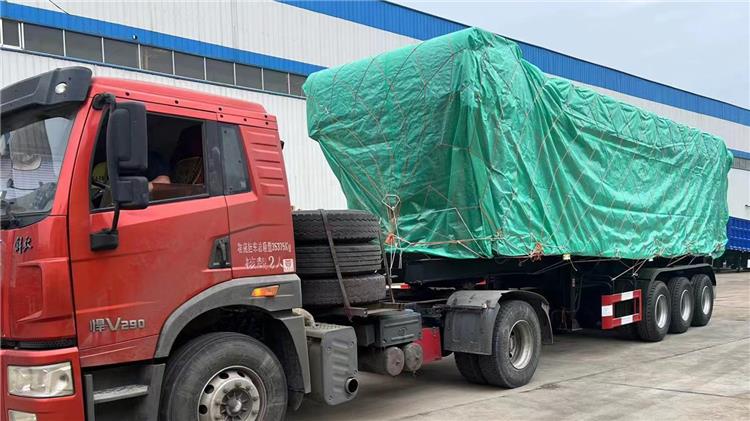

Tipper semi trailer price are usually shipped in bulk. We would first spray the trailer with a thick layer of wax and then cover the body with a rain cloth to reduce seawater corrosion to the tank.
