150 Ton Removable Gooseneck Trailer with Dolly

150 Ton Removable Gooseneck Trailer

The main beam of 150 ton removable gooseneck trailer adopts submerged arc welding technology to improve the bearing capacity and meet the bearing requirements of bad road conditions.

The loading ramp of the 150 ton removable gooseneck trailer is made of high-strength steel, which has a high load-carrying capacity and will not deform when carrying heavy equipment.

The 150 ton removable gooseneck trailer suspension ensures its high load-carrying capacity and increases its resistance to torsion, shock and crash.

What is a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale

What is a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale

What is a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale

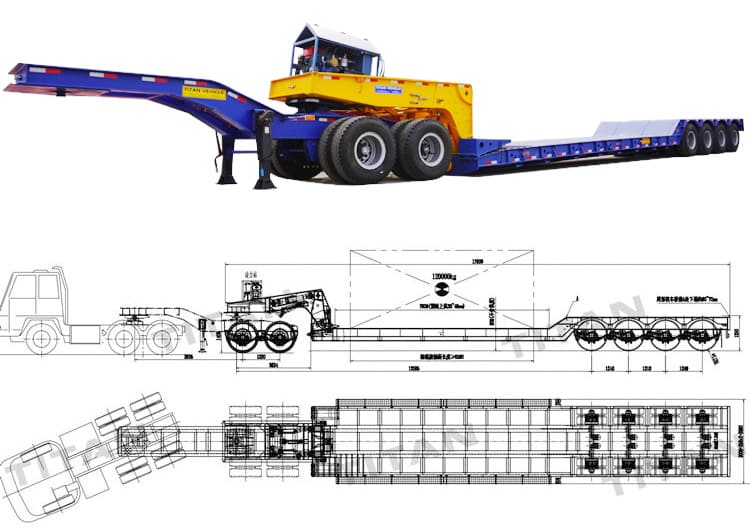

Removable Gooseneck Trailer Specification:

Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles：4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping Terms: By bulk cargo, RORO or 40HQ containers

What is a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale

If you are interested, please leave your message below, we will contact with you soon.
