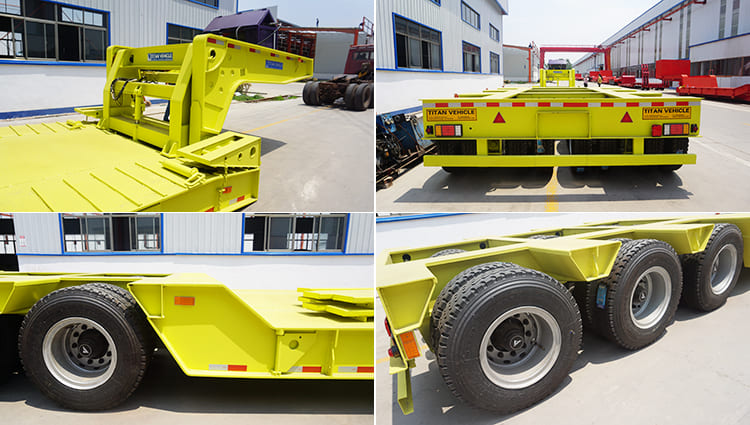

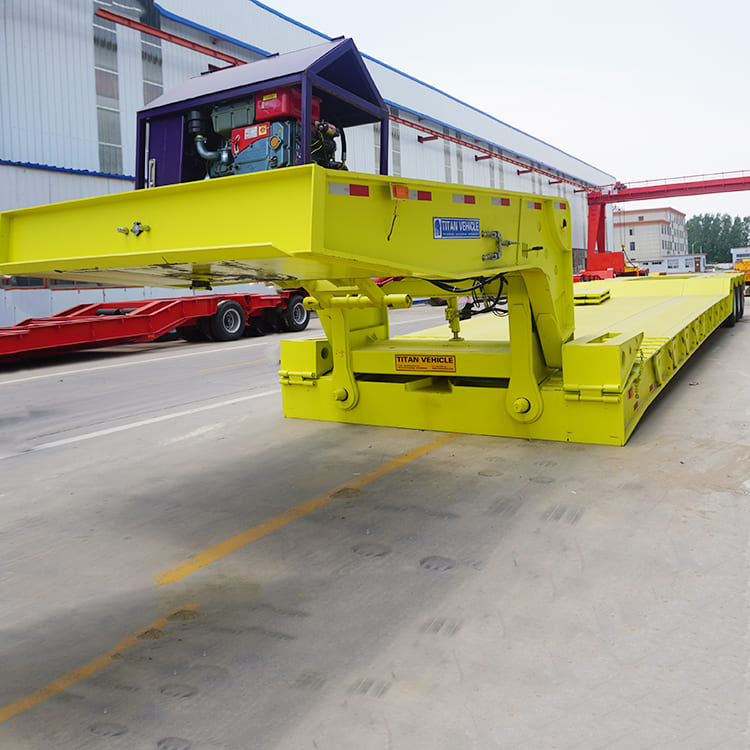

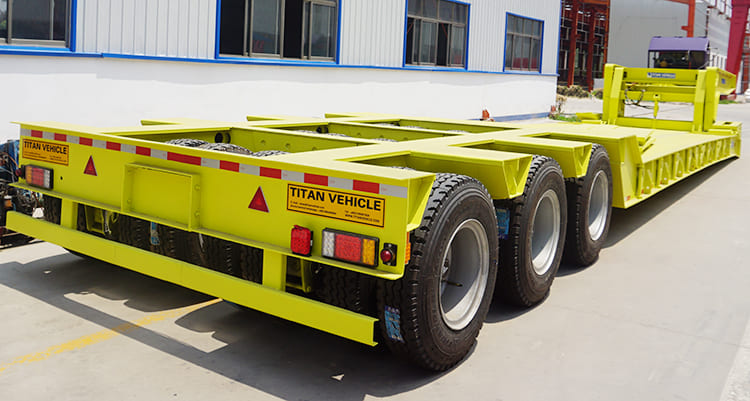

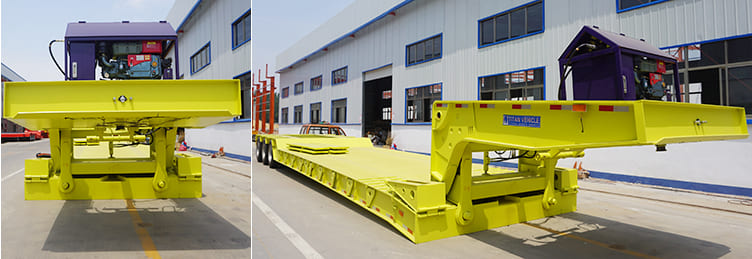

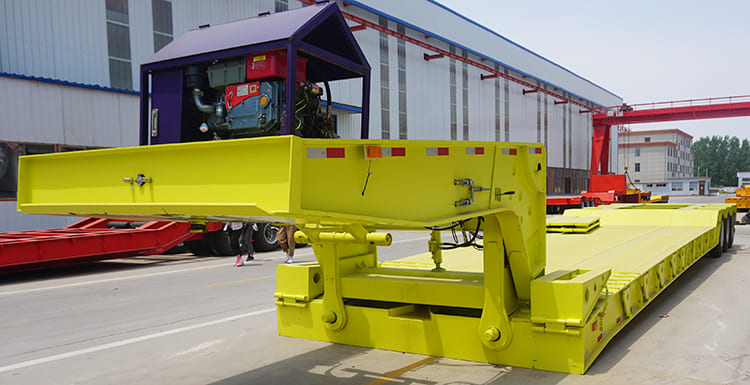

The 3 line 6 axle hydraulic gooseneck detachable lowboy trailer is mainly used to transport large machinery and heavy equipment, such as excavators. The front gooseneck can be removed when loading heavy goods.
The hydraulic gooseneck detachable lowboy trailer consists of two parts - the detachable gooseneck and the loading platform, made or docked with the rear wheel bogie. This hydraulic gooseneck detachable lowboy trailer adopts hydraulic gooseneck, the hydraulic system has gone through five major system upgrades in ten years of production, the hydraulic system is now very stable.
The main beam of this hydraulic gooseneck detachable lowboy trailer is made of HG60 high strength structural steel.
3 Line 6 Axle Hydraulic Gooseneck Detachable Lowboy Trailer for Sale Price
3 Line 6 Axle Hydraulic Gooseneck Detachable Lowboy Trailer for Sale Price
3 Line 6 Axle Hydraulic Gooseneck Detachable Lowboy Trailer for Sale Price
3 Line 6 Axle Hydraulic Gooseneck Detachable Lowboy Trailer for Sale Price
Overall dimension：17000mm * 3000mm *2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
If you are interested, please leave your message below, we will contact with you soon.
