80 ton removable gooseneck lowboy trailer can separate the gooseneck from the trailer, and realize the contact between the front end of the vehicle and the ground, and realize the easy loading of goods
The design of 80 ton removable gooseneck lowboy trailer fully considers the operating cost and reliability, and the maintenance cost is low. , The structure of 80 ton removable gooseneck lowboy trailer is easy to assemble and light in weight, which are the characteristics of the structure of the 80 ton removable gooseneck lowboy trailer.
Due to the complex structure of the 80 ton removable gooseneck lowboy trailer, a large amount of cargo can be transported at one time, so the cost of this kind of trailer is low.
80 Ton Removable Gooseneck Lowboy Trailer for Sale Manufacturers
80 Ton Removable Gooseneck Lowboy Trailer for Sale Manufacturers
80 Ton Removable Gooseneck Lowboy Trailer for Sale Manufacturers

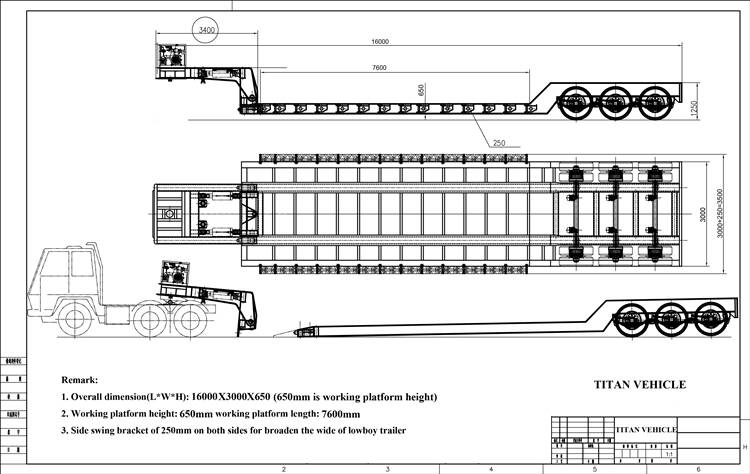

Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
