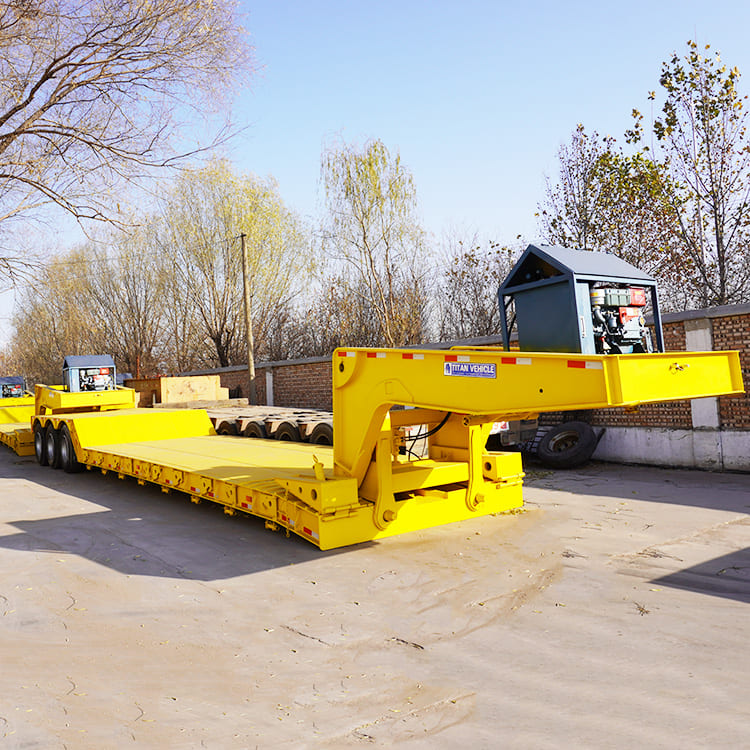

Using 3 axle 100t detachable gooseneck lowboy trailer improve the safety of cargo transportation. The cargo platform can be adjusted according to the amount of cargo, and the distance between the height and the headroom can be adjusted, making the loading, unloading and transportation of cargo more convenient and safe
The main purpose of the detachable gooseneck low boy trailer is to transport heavy self-propelled equipment. Structurally and technically, these detachable gooseneck low boy trailers are more complex than those low-bed semi-trailers, and are more expensive to manufacture and operate.
Detachable gooseneck low boy trailer hydraulic system, after five major system upgrades in ten years of production, the hydraulic system is now very stable. Customers only need regular maintenance, fully available for ten years
3 Axle 100T Detachable Gooseneck Lowboy Trailers for Sale Price in Cayman Islands
3 Axle 100T Detachable Gooseneck Lowboy Trailers for Sale Price in Cayman Islands
3 Axle 100T Detachable Gooseneck Lowboy Trailers for Sale Price in Cayman Islands

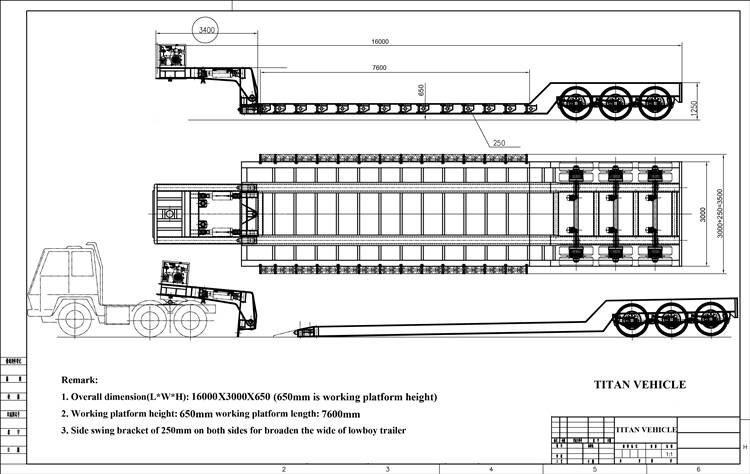

Dimension: 16000mm x 3000mm x 2500mm
Loading capacity(T): 100T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

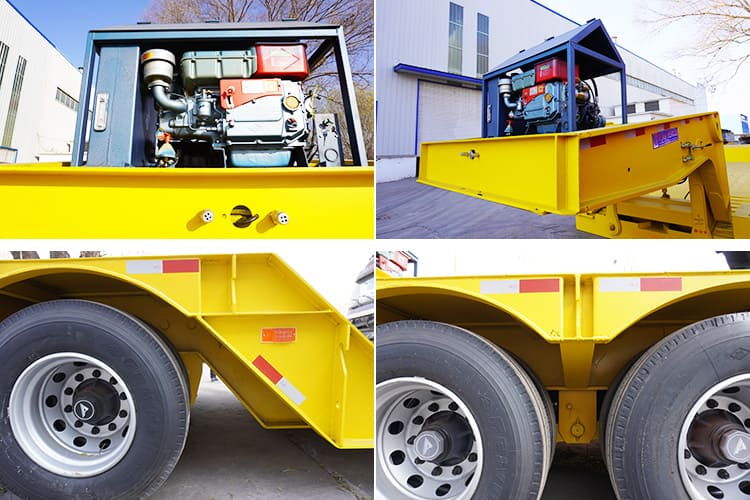

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
3 Axle 100T Detachable Gooseneck Lowboy Trailers for Sale Price in Cayman Islands
If you are interested, please leave your message below, we will contact with you soon.
