The Shacman heavy duty truck has a wide driving field of view for improved driving safety. The cab is suitable for long-distance transport, with a double sleeper. You can choose according to your needs. The cab has reasonable and comfortable layout, novel design and complete equipment configuration.
If the Shacman heavy duty truck you purchased is mainly used for medium and long-distance transportation, we mainly recommend that you choose a shacman heavy duty truck with a sleeper, and the two cabs are also more spacious, which is convenient for two drivers to drive alternately.

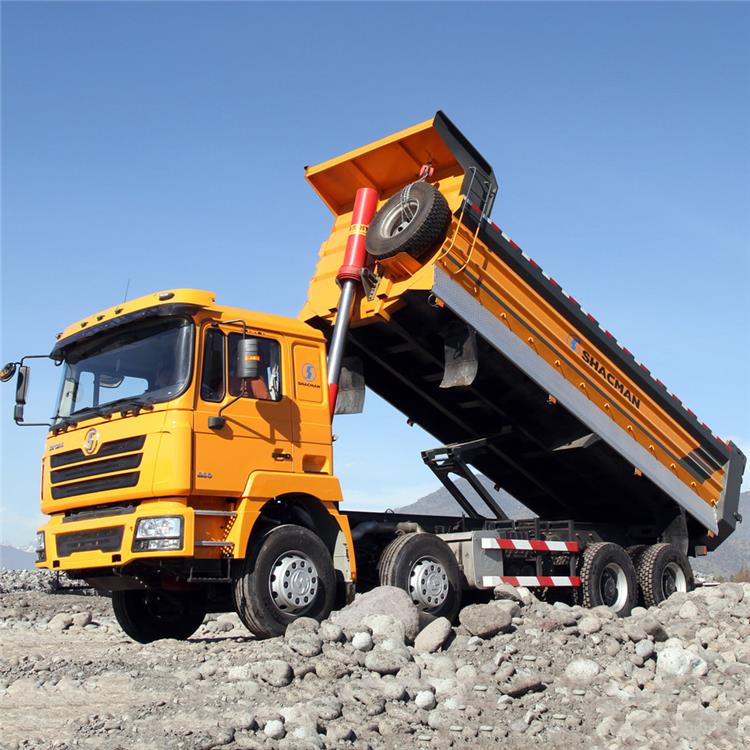

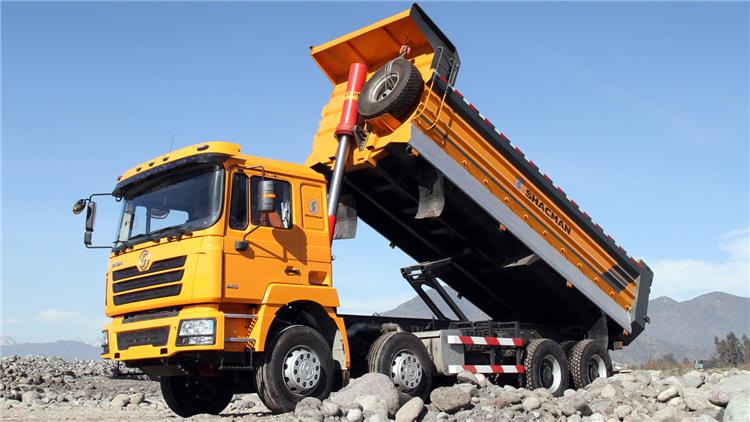

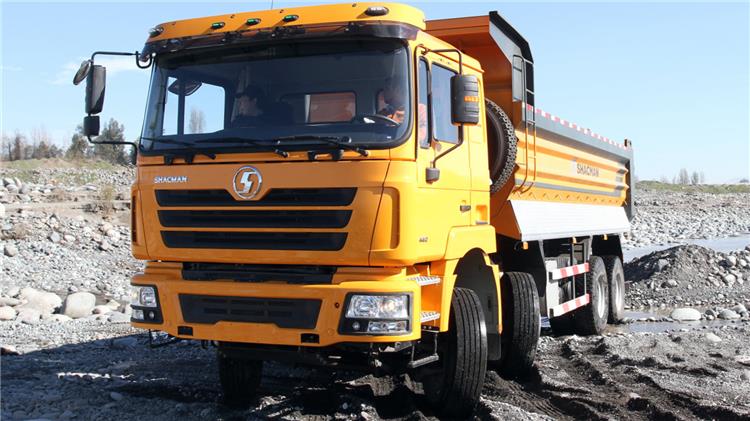

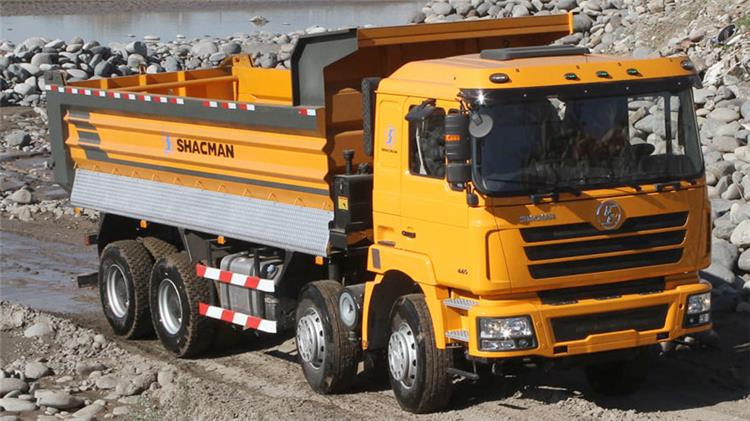

Shacman Truck F3000 | Shacman Heavy Duty 8x4 440hp Dump Truck for Sale
Shacman Truck F3000 | Shacman Heavy Duty 8x4 440hp Dump Truck for Sale
Shacman Truck F3000 | Shacman Heavy Duty 8x4 440hp Dump Truck for Sale
Brand: Shacman Truck for Sale
Drive model: Left or right driven hand, 8X4
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various widths, front 940mm and rear 780mm
Rear suspension: inverted leaf spring with stabilizer
Instrument panel: Combined instrument panel
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab
Other: enlargement radiator, ABS
Shacman Truck for Sale Engine:
Engine model: Weichai WP10.336
Power(Kw/Hp): 440
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1250
Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard
Stroke(mm):125/147
Displacement(L):9.726
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
Thermostat Opened at 82℃
Oil pump: Bosch
Steering
Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Brakes
Running brake: Dual circuiting compressed air brake
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Shacman Truck for Sale Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Weight(Kg)
GVW:25000
Front axle loading capacity:7500
Rear axle loading weight: 13000X2
Performance:
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
Dimension (mm)
Wheel base:3200+1350
Front-wheel track:1525
Rear wheel track:2036
Front overhang: 1850
Rear overhang: 1450
Approach angle: 28°
Departure angle: 30°
Overall length: 7550
Overall width:2490
Overall height: 3450
Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)
Fuel tank(L): 300L
