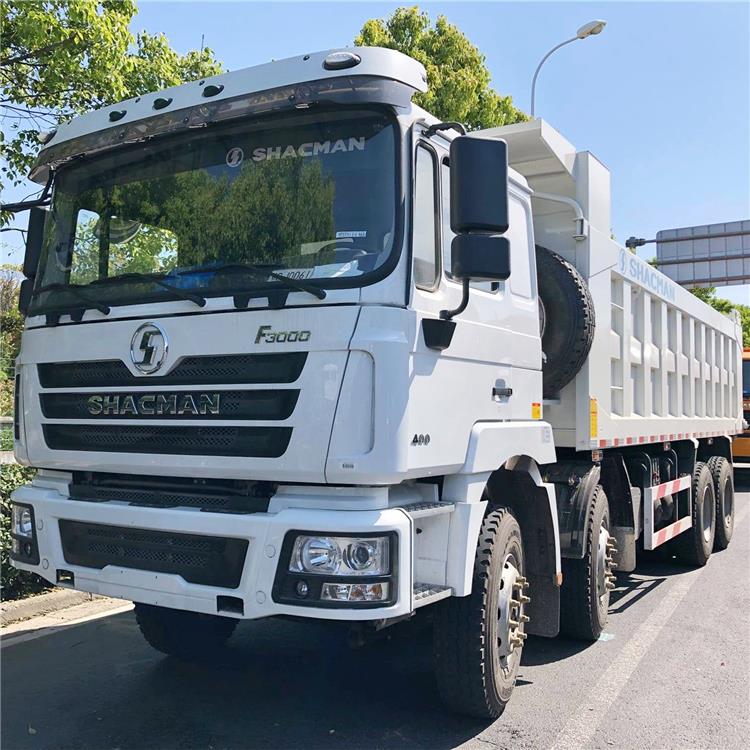

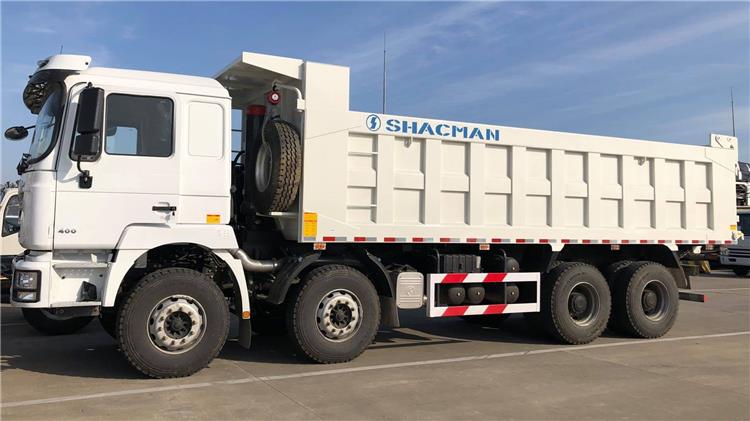

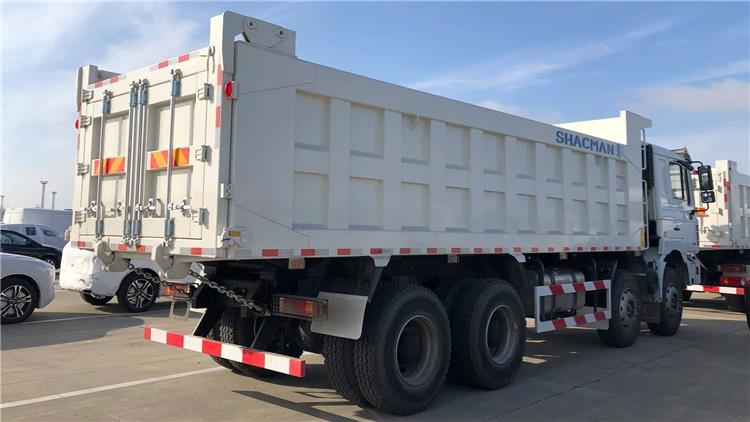

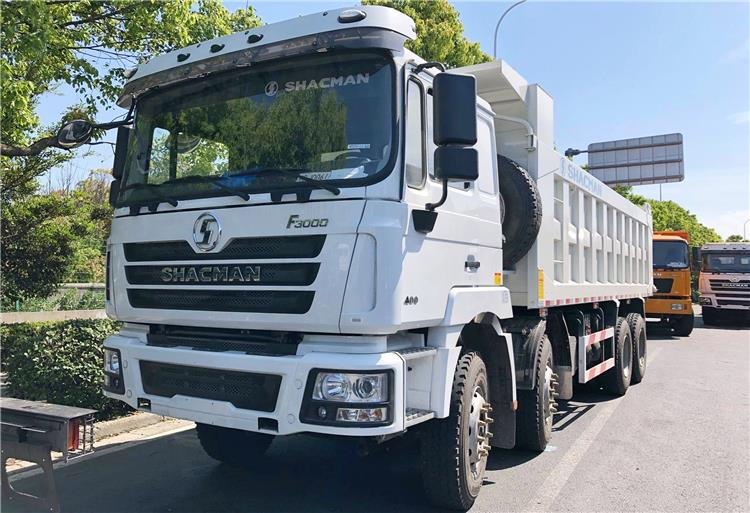

F3000 Shacman 12 Wheeler Tipper Truck

F3000 Shacman Truck Price

The desert dual-stage filter is installed between the two guide wheels on the right side of the Shacman truck price in nigeria. Shacman truck price in nigeria are often driven on unpaved roads and are dusty. Two-stage filtration can ensure the cleanliness of the engine intake.

The double filter adopts a quick-release design for easy maintenance. At the same time, to prevent the rear guide tire from contaminating the filter, the fenders completely cover the filter housing. Shacman truck price in nigeria Appearance: atmospheric, simple and calm

F3000 Shacman Truck Price | Shacman 400 12 Wheeler Tipper Truck Price

F3000 Shacman Truck Price | Shacman 400 12 Wheeler Tipper Truck Price

F3000 Shacman Truck Price | Shacman 400 12 Wheeler Tipper Truck Price

F3000 Shacman Specification:

Brand: Shacman 12 Wheeler Truck Price

Drive model: Left or right driven hand, 8X4

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller 12JSD200T-B gearbox with 12 forward and 2 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 9.5 tons

Rear axle:16tons with hub reduction ratio 5.262

Chassis: Various widths, 850mm

Rear suspension: inverted leaf spring with stabilizer

Instrument panel: Combined instrument panel

Tyre: 12.00-20/12.00R20/12.00R22.5,13ps

Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab

Other: enlargement radiator, ABS

Shacman 12 Wheeler Truck Price Engine:

Engine model: Weichai WP12.400E201

Power(Kw/Hp): 400

Speed(r/min):2200

Idle speed(r/min):600-800

Max torque(N.m):1250

Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard

Stroke(mm):125/147

Displacement(L): 11.596

Min.fuel consumption(g/Kw.h):≦198

Engine oil filling volume:39L

Thermostat Opened at 82℃

Oil pump: Bosch

Shacman 12 Wheeler Truck Price Steering

Model:  integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Electrics

Starter: 5.58kw,24V

Alternator: 1.54kw(28V,55A)

Battery: 135AH

Dimension (mm)

Wheel base: 1800+3575+1400

Front-wheel track:1525

Rear wheel track:2036

Front overhang: 1850

Rear overhang: 1450

Approach angle: 28°

Departure angle: 30°

Overall length: 7550

Overall width:2490

Overall height: 3450

Body dimension:7600X2300X1700(bottom 8mm and side 6mm)

Fuel tank(L): 300L

Weight(Kg)

GVW: 70000

Front axle loading capacity:9500

Rear axle loading weight: 16000X2

Performance:

Max. running speed(km/h):90

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
