Truck Shacman 3000 series use the most advanced assemblies in China, and the engines use Weichai Power II-generation WP series engines, MAN series axles imported from Germany MAN Company and other well-known domestic manufacturers.
The advantages of truck shacman 3000 are very obvious. This model has the advantages of strong power, good economy and high reliability, which can meet various needs of users.
At the same time, the cab of the shacman 420 head tractor truck adopts a new modern design and four-point hydraulic suspension technology, which is overall beautiful and comfortable to ride.

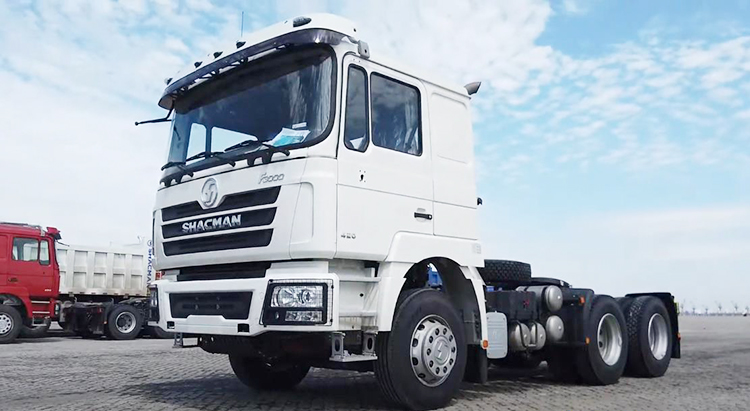

Truck Shacman 3000 -- Shacman 420 Head Tractor Truck Price Philippines

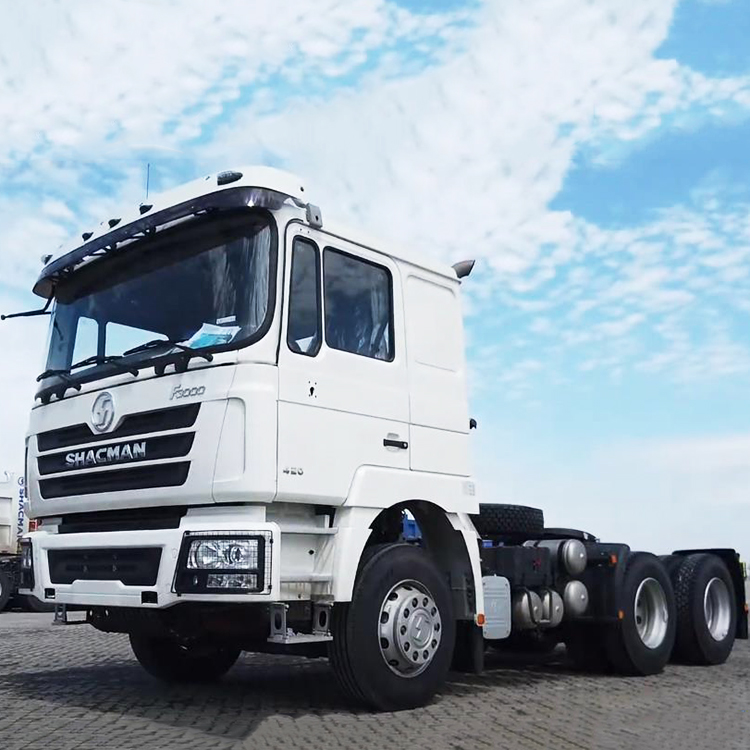

Truck Shacman 3000 -- Shacman 420 Head Tractor Truck Price Philippines

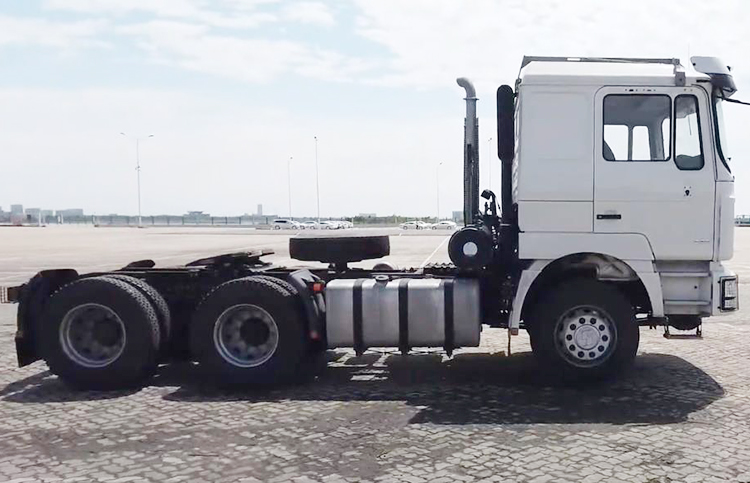

Truck Shacman 3000 -- Shacman 420 Head Tractor Truck Price Philippines
Brand: Shacman F3000 Tractor Head
Drive model: Left or right driven hand, 6X4
Max Speed (km/h): 90
Cab: F3000 cab, double sleeper air main seat, four-point air suspension cab, electric automatic thermostatic air conditioning
gearbox
Gearbox Model: 10JSD140
Shift mode: manual transmission
Tire
Number of tires: 10
Tire specification: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Dimensions
Total mass(kg): 25000
LWH(mm) : 6825×2490× 4000
Front wheel track (mm): 2036
Rear wheel track (mm): 1800
Wheelbase (mm):3175+1400
Overhang(front/rear) (mm): 1525/725
Approach angle(°): 20
Departure angle(°): 66
Engine:
Engine model: WP12.336E40
Maximum power speed: 1900rpm
Maximum torque: 1800N.m
Maximum torque speed: 1000-1400rpm
Maximum horsepower: 420hp
Horsepower displacement: 11596mL
Fuel Type: Diesel
Chassis:
Frame section: frame width/height (850/300)
Number of leaf springs: 4/5
Clutch: Φ430 diaphragm
Front axle description: 7.5T MAN+
Drum rear axle description: 13T MAN double stage, speed ratio 4.266
Fuel tank capacity: 400L
