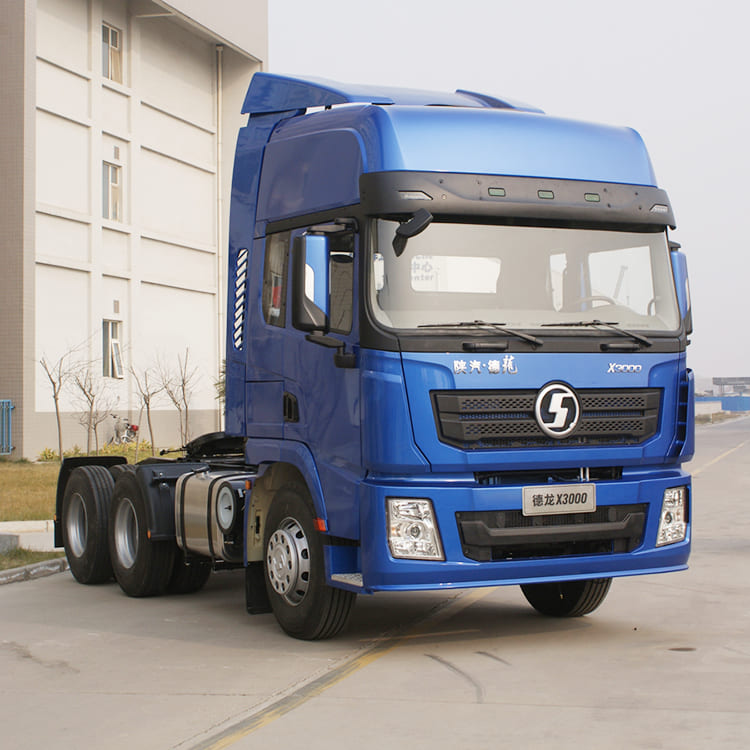

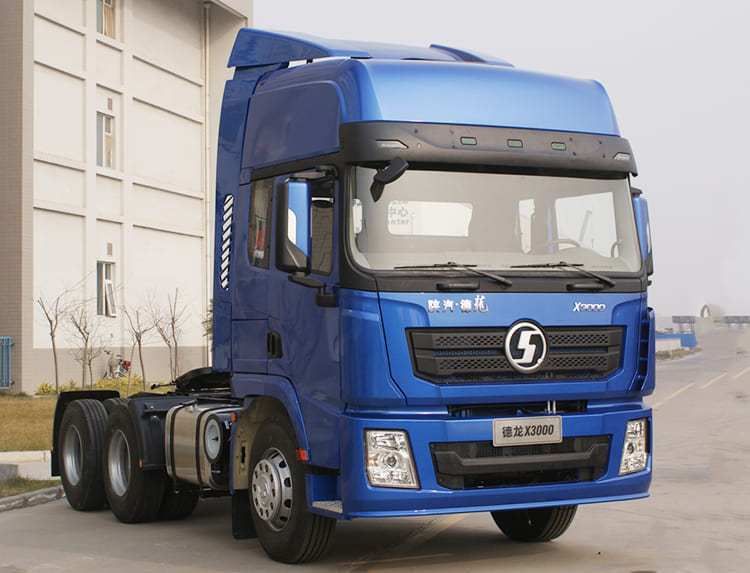

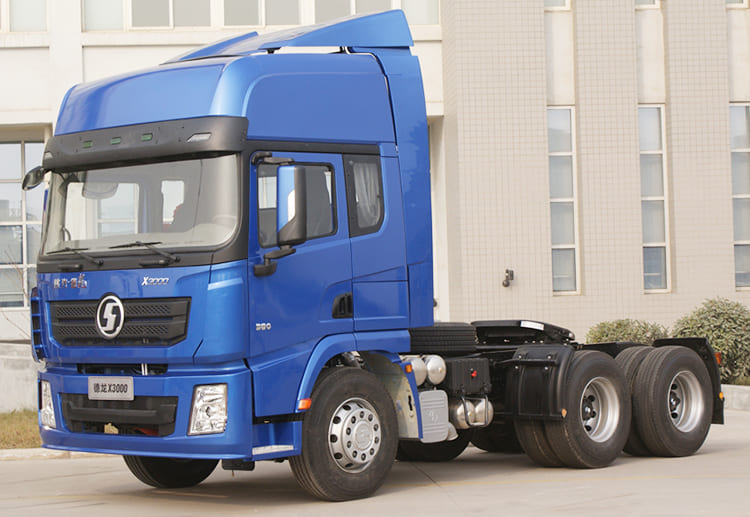

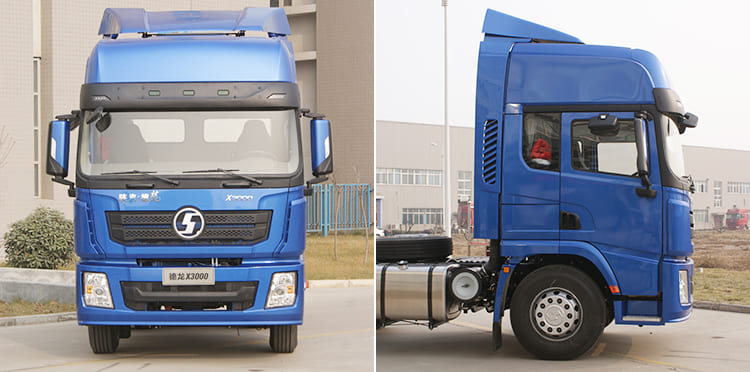

Shaanxi X3000 6x4 Head of the Truck

Shaanxi X3000 6x4 Head of the Truck

The Shaanxi x3000 6x4 head of the truck adopts the Jacob engine braking system, which reduces the loss of the braking system, reduces the fuel consumption, and improves the driving safety.

Shaanxi x3000 6x4 head of the truck  has many of the latest intelligent technologies of heavy trucks. Weichai engine adopts the latest engine fuel supply system of domestic and international heavy trucks, which can effectively work and reduce fuel consumption.

Shaanxi X3000 6x4 Head of the Truck for Sale in Philippines

Shaanxi X3000 6x4 Head of the Truck for Sale in Philippines

Shaanxi X3000 6x4 Head of the Truck for Sale in Philippines

Shaanxi X3000 Truck Specification：

Brand: Shacman X3000 Tractor Head

Drive model: Left or right driven hand, 6X4

Max Speed (km/h): 90

Cab: X3000 cab, double sleeper air main seat, four-point air suspension cab, electric automatic thermostatic air conditioning

gearbox

Gearbox Model: 10JSD140

Shift mode: manual transmission

Tire

Number of tires: 10

Tire specification: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Dimensions

Total mass(kg): 25000

LWH(mm) : 6825×2490× 4000

Front wheel track (mm): 2036

Rear wheel track (mm): 1800

Wheelbase (mm):3175+1400

Overhang(front/rear) (mm): 1525/725

Approach angle(°): 20

Departure angle(°): 66

Engine:

Engine model: WP12.336E40

Maximum power speed: 1900rpm

Maximum torque: 1800N.m

Maximum torque speed: 1000-1400rpm

Maximum horsepower: 420hp

Horsepower displacement: 11596mL

Fuel Type: Diesel

Chassis:

Frame section: frame width/height (850/300)

Number of leaf springs: 4/5

Clutch: Φ430 diaphragm

Front axle description: 7.5T MAN+

Drum rear axle description: 13T MAN double stage, speed ratio 4.266

Fuel tank capacity: 400L
