Shacman 6x4 X3000 Head

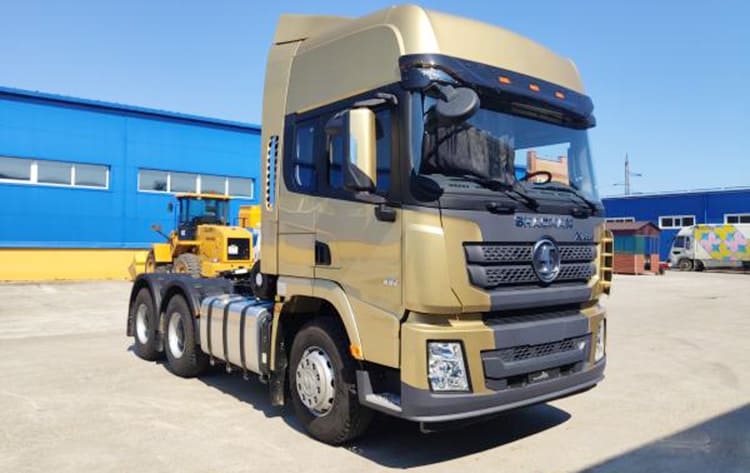

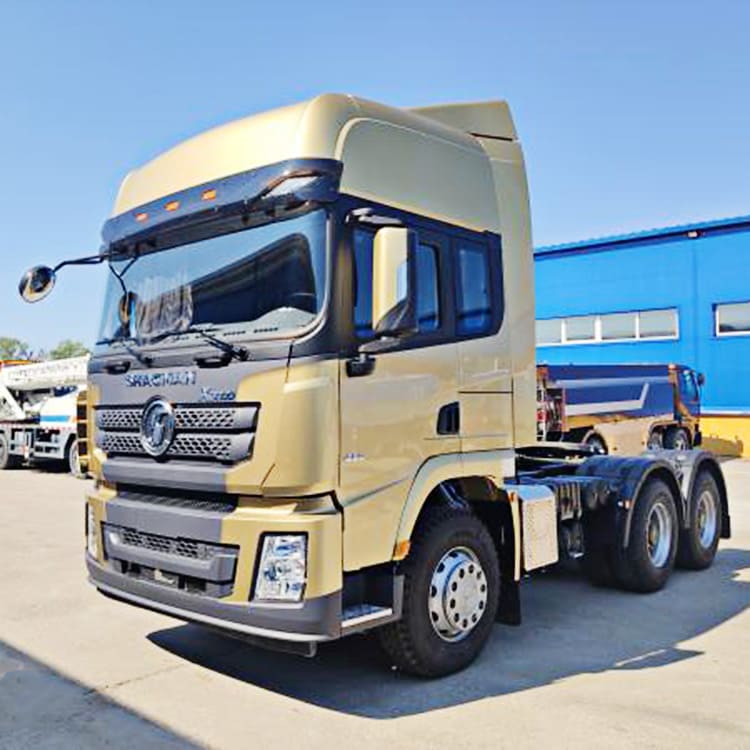

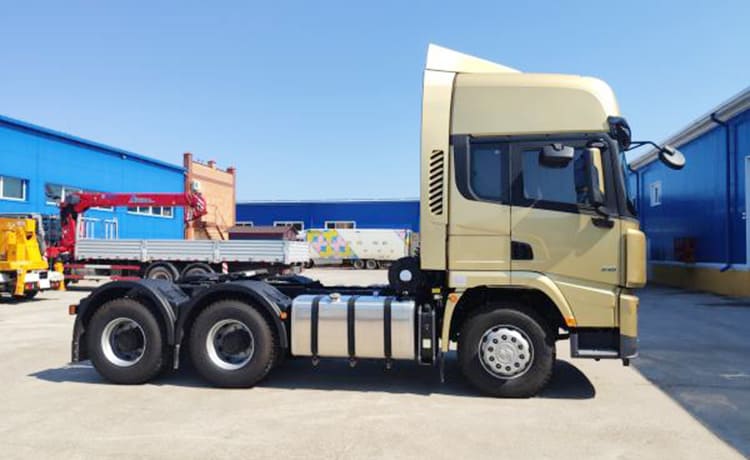

Shacman Truck X3000 Tractor Truck:

Shacman truck x3000 tractor truck adopt variable-width structure, and the most important thing is the use of new materials, which not only ensures the load-bearing and torsional resistance of the frame, but also reduces the self-weight of the shacman truck x3000 tractor truck.

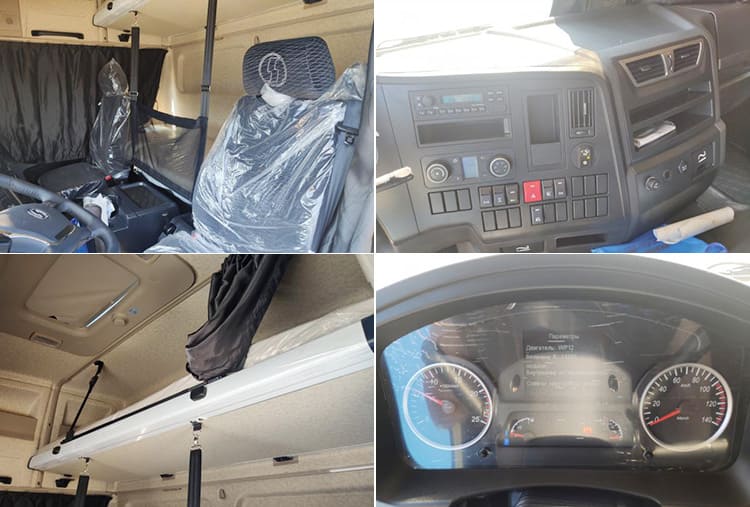

The cab of the shacman truck x3000 tractor truck is longer, the interior space is larger, and the sleeper is wider. The cab has been lengthened by nearly 30cm, and the width of the sleeper has been increased to 90cm. The thickness of the material on the front of the cab is strengthened, and the frame structure is adopted. When a vehicle collides, it fully absorbs the impact energy, reduces vehicle damage, and effectively protects the personal safety of drivers and passengers.

Shacman Truck X3000 | Shacman 6x4 Tractor Truck Price in Jamaica West Indies

Shacman Truck X3000 | Shacman 6x4 Tractor Truck Price in Jamaica West Indies

Shacman Truck X3000 | Shacman 6x4 Tractor Truck Price in Jamaica West Indies

Shacman Truck X3000 Specification:

Brand: Shacman X3000 Tractor Head

Drive model: Left or right driven hand, 6X4

Max Speed (km/h): 90

Cab: X3000 cab, double sleeper air main seat, four-point air suspension cab, electric automatic thermostatic air conditioning

gearbox

Gearbox Model: 10JSD140

Shift mode: manual transmission

Tire

Number of tires: 10

Tire specification: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Dimensions

Total mass(kg): 25000

LWH(mm) : 6825×2490× 4000

Front wheel track (mm): 2036

Rear wheel track (mm): 1800

Wheelbase (mm):3175+1400

Overhang(front/rear) (mm): 1525/725

Approach angle(°): 20

Departure angle(°): 66

Engine:

Engine model: WP12.336E40

Maximum power speed: 1900rpm

Maximum torque: 1800N.m

Maximum torque speed: 1000-1400rpm

Maximum horsepower: 420hp

Horsepower displacement: 11596mL

Fuel Type: Diesel

Chassis:

Frame section: frame width/height (850/300)

Number of leaf springs: 4/5

Clutch: Φ430 diaphragm

Front axle description: 7.5T MAN+

Drum rear axle description: 13T MAN double stage, speed ratio 4.266

Fuel tank capacity: 400L
