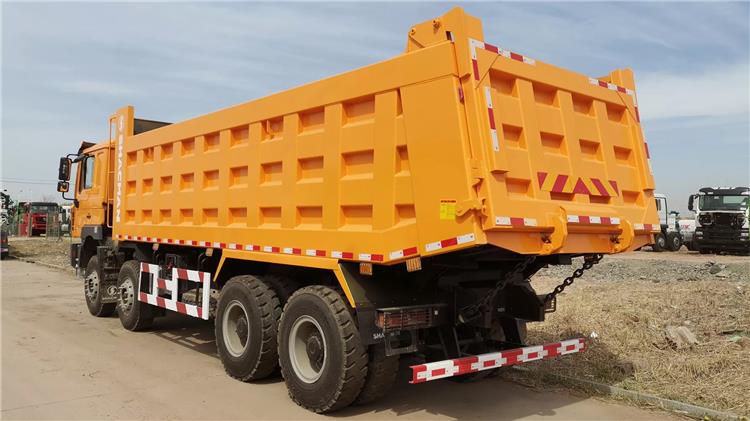

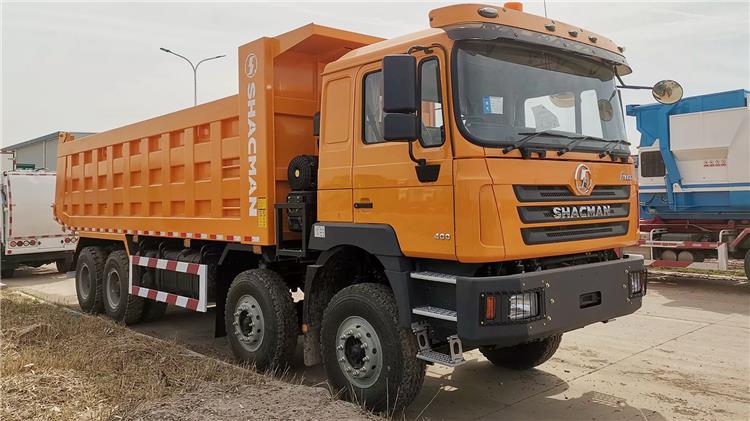

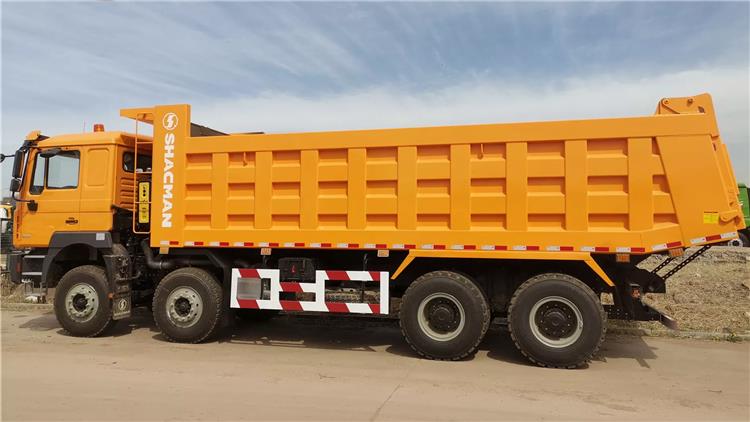

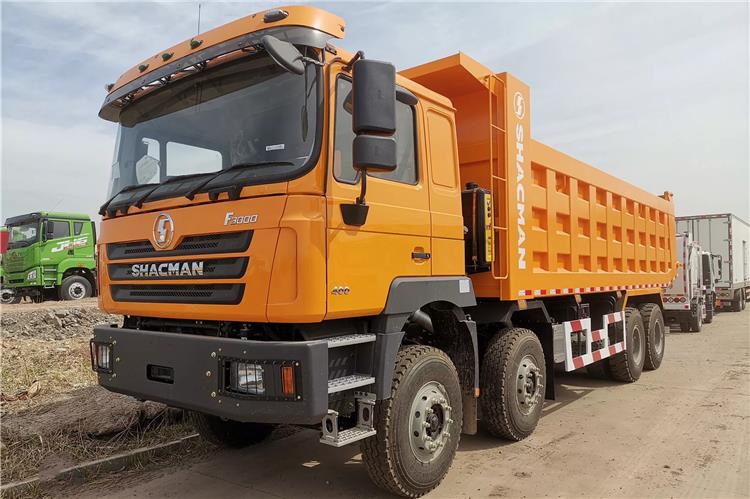

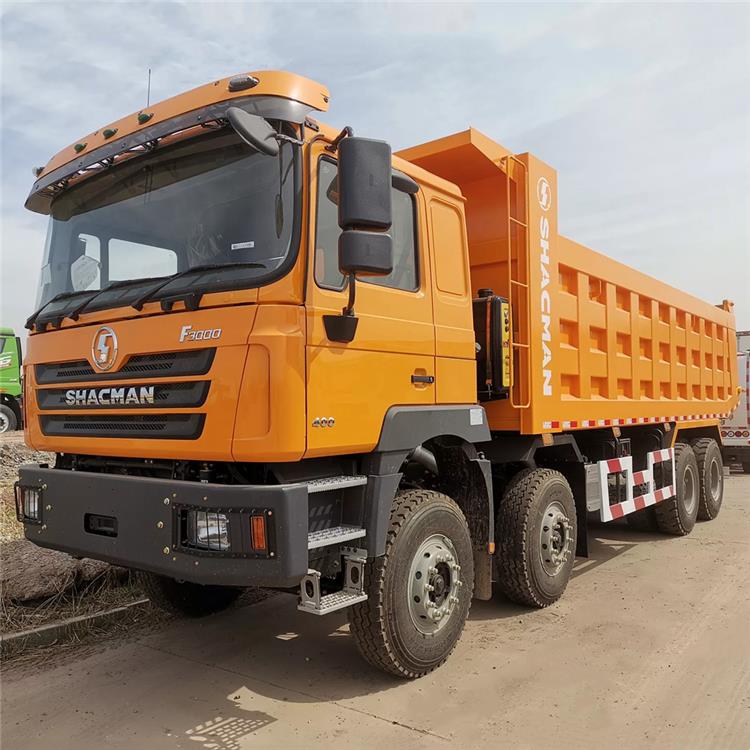

Shacman 8x4 12 Wheeler Dump Truck

Shacman 8x4 12 Wheeler Dump Truck Price

The Shacman 12 wheeler dump truck has good damping performance, and the smoothness index is the same as that of the Mercedes-Benz Actros. The noise in the cab is low, and the combined use of multi-layer "suction and isolation" integrated noise reduction and damping noise reduction technology creates a quiet environment in the cab.

Shacman 12 wheeler dump truck is equipped with retarder, disc brake, EBS braking technology, engine braking technology, rearview mirror extended field of view and many other safety technologies to protect the safety of drivers and passengers. The cab of the shacman 12 wheeler dump truck adopts a frame-driven structure design, and the anti-extrusion capacity is increased by 22.9%.

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

Shacman 8x4 Dump Truck Price | F3000 Shacman | Shacman 12 Wheeler Truck Price

F3000 Shacman | Shacman 8x4 Dump Truck

F3000 Shacman Specification:

Brand: Shacman 8x4 12 Wheeler Dump Truck Price

Truck Model: SX3315DU386

Drive model: Left or right driven hand, 8X4

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller 12JSD200T-B gearbox with 12 forward and 2 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 9.5 tons

Rear axle: 16 tons with hub reduction ratio 5.262

Rear suspension: inverted leaf spring

Instrument panel: Combined instrument panel

Tyre: 12.00R20/12R22.5, 315/80R22.5  (13ps)

Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab

Other: enlargement radiator, ABS

Engine:

Engine model: Weichai WP12.400E201

Power(Kw/Hp): 400

Type: diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-II emission standard

Displacement(L): 11.596

Steering

Model: integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Electrics

Starter: 5.58kw,24V

Alternator: 1.54kw(28V,55A)

Battery: 135AH

Dimension (mm)

Wheel base: 1800+3775+1400

Front-wheel track:1525

Rear wheel track:2036

Front overhang: 1850

Rear overhang: 1450

Approach angle: 28°

Departure angle: 30°

Overall length: 10550

Overall width:2550

Overall height: 3450

Body dimension: 7600X2300X1500/1700(bottom 8mm and side 6mm)

Fuel tank(L): 380L

Weight(Kg)

GVW: 70000-90000

Performance:

Max. running speed(km/h):80

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
