5 Axle 100 Ton Lowbed Truck Trailer

100 Ton Lowbed for sale

The working platform height of the 100 ton lowbed for sale is designed to be very low, so that when the heavy equipment is loaded, the center of gravity of the 5 axle 100 ton lowbed truck trailer will be very low, and the transportation process will be safer. This 5 axle 100 ton lowbed truck trailer can carry up to 100 tons of cargo.

We can customize your 100 ton lowbed for sale according to customer needs, you can choose 3, 4, 5, 6, axles with different carrying capacity, 60, 80, 100, 120, 150 tons

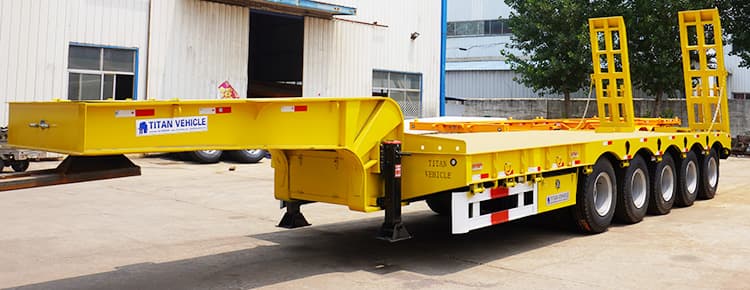

5 Axle 100 Ton Lowbed Truck Trailer for Sale Near Me in Ghana

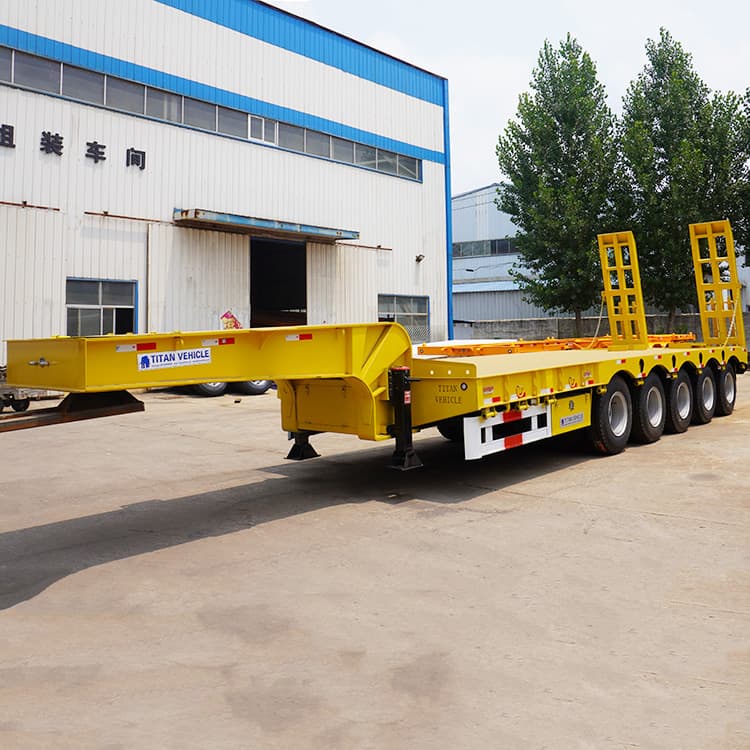

5 Axle 100 Ton Lowbed Truck Trailer for Sale Near Me in Ghana

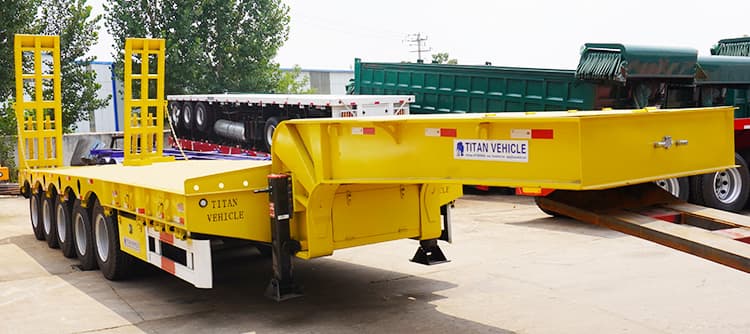

5 Axle 100 Ton Lowbed Truck Trailer for Sale Near Me in Ghana

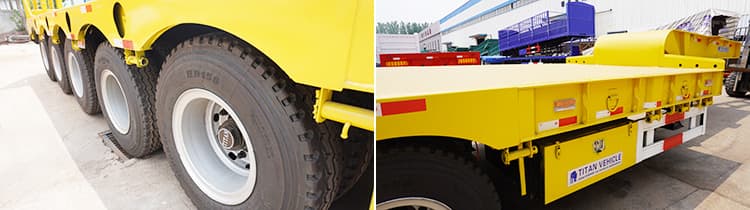

5 Axle 100 Ton Lowbed Truck Trailer for Sale Near Me in Ghana

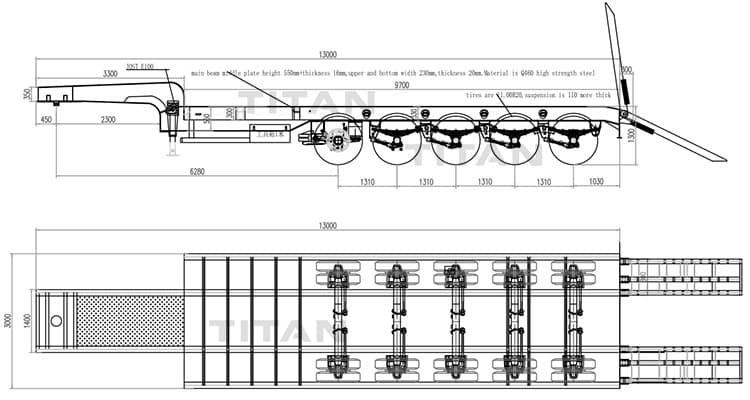

 5 Axle Lowbed Truck Trailer Specification:

Overall dimension: 13000mm * 3000mm *1710mm

Loading capacity(T): 100 tons

Axle: 5 axle, 13T/16T, FUWA / BPW Brand

Rim: 8.0-20

Tire: 20units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

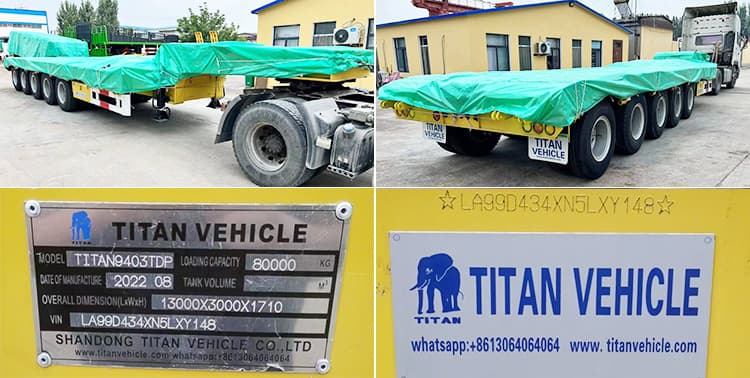

Package of the 100 ton lowbed for sale

5 Axle 100 Ton Lowbed Truck Trailer for Sale Near Me in Ghana
