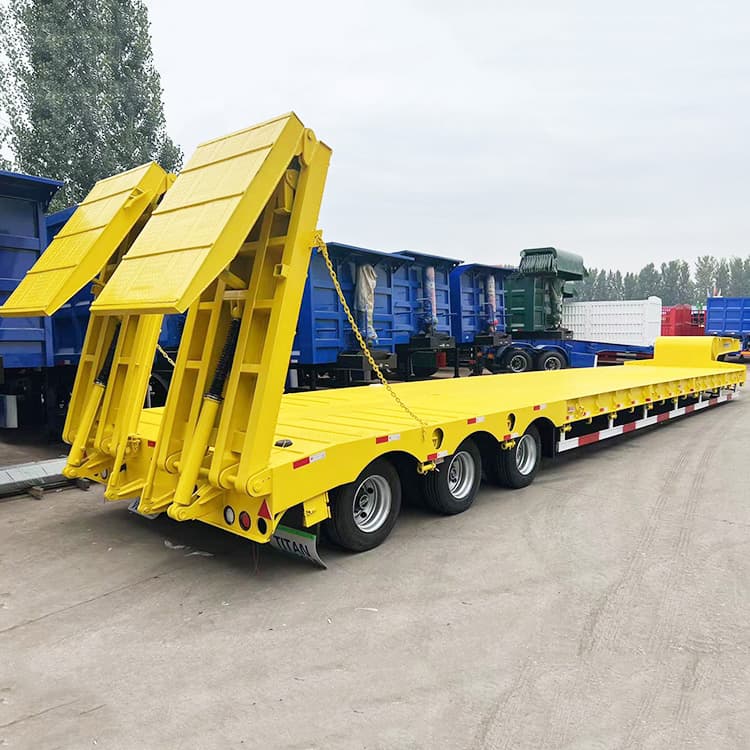

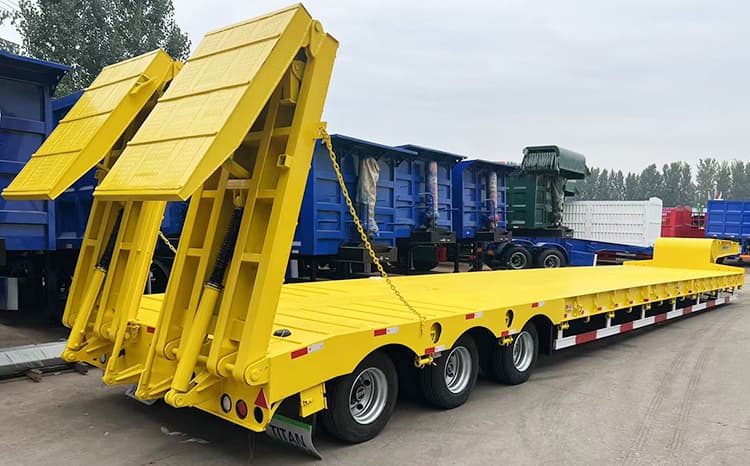

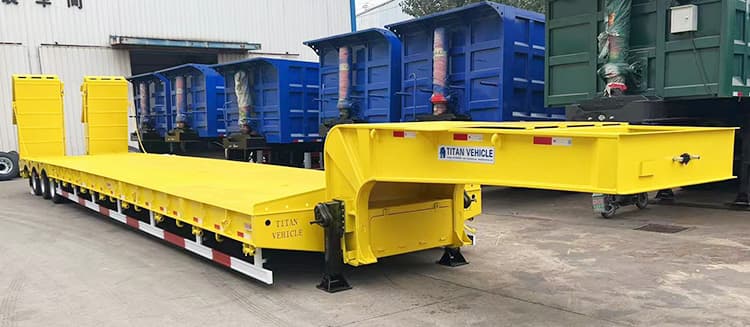

The feature of this 3 axle hydraulic low bed trailer with folding ladders is that the ladder can be folded, which can reduce the height of the whole 3 axle hydraulic low bed trailer, more easy to pass through
As a professional manufacturer, we adopt famous brand accessories, such as WABCO brake valve, JOST landing gear, FUWA, BPW axle. This greatly extends the life of the 3 axle hydraulic low bed trailer with folding ladders.

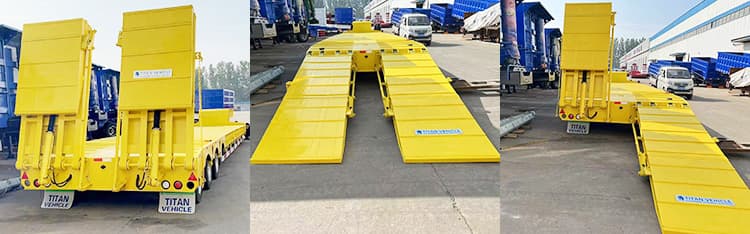

Ramp can choose folding, hydraulic, spring ladders, customers can customize according to their specific needs, materials and accessories (axles, suspension) are also optional.
3 Axle Hydraulic Low Bed Trailer Price Manufacturer Near Me in Kenya
3 Axle Hydraulic Low Bed Trailer Price Manufacturer Near Me in Kenya
3 Axle Hydraulic Low Bed Trailer Price Manufacturer Near Me in Kenya

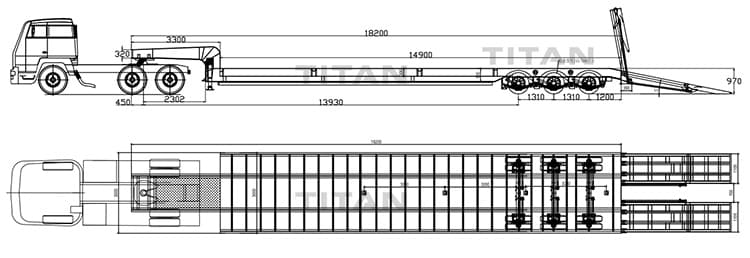

Overall dimension: 18200mm * 3000mm *3700mm
Loading capacity(T): 80 tons
Axle: 3 axle semi low bed trailer, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: folding ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
3 Axle Hydraulic Low Bed Trailer Price Manufacturer Near Me in Kenya
If you are interested, please leave your message below, we will contact with you soon.
