The combined tank mouth is located at the top of the tank body, there is a self-locking small cover on the large cover, and a breathing valve is installed on the upper side of the large cover to ensure the consistency of atmospheric pressure inside and outside the aluminum tanker trailer
To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safe, and also beneficial.
The use of aluminum tanker trailer can not only greatly reduce the vehicle's own weight and improve transportation efficiency, but also has a long service life, which is 5-10 years longer than that of a steel tanker. During the entire life cycle, the profits created are very considerable.

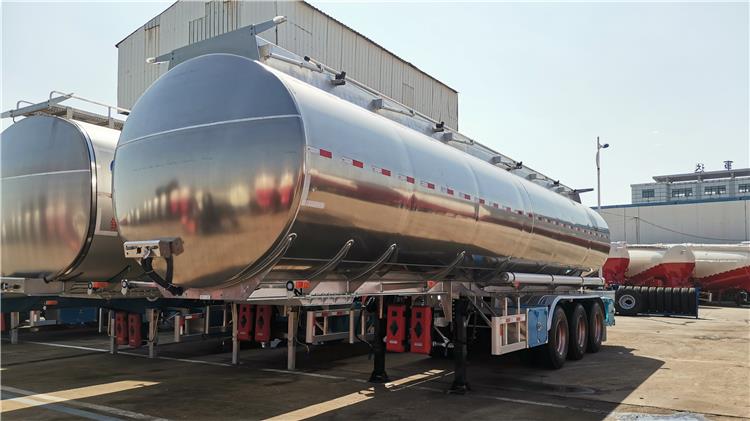

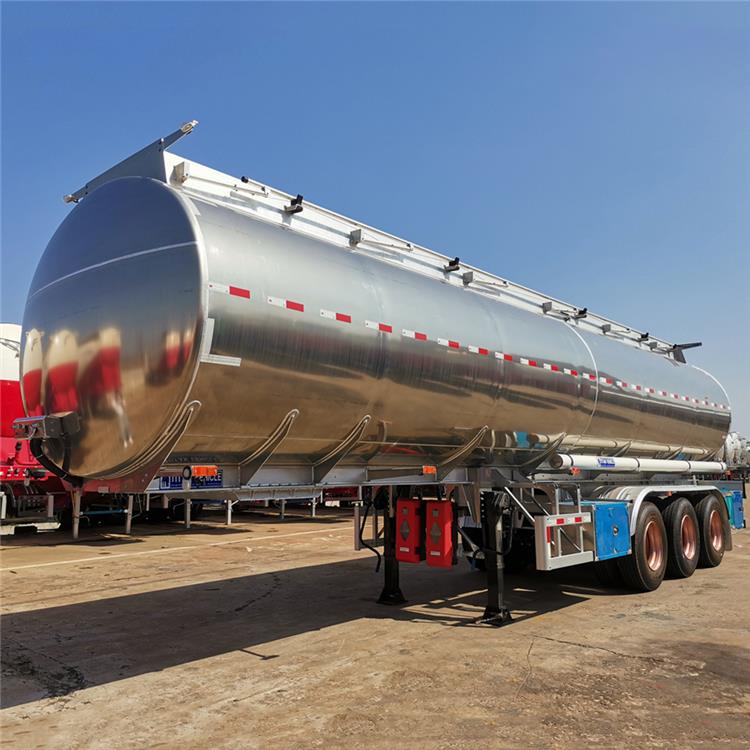

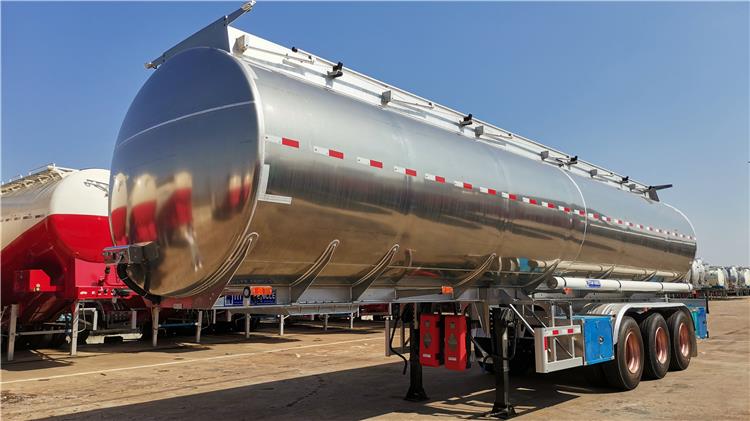

45000 Ltrs Aluminum Tankers Trailer for Sale In Zimbabwe
45000 Ltrs Aluminum Tankers Trailer for Sale In Zimbabwe
45000 Ltrs Aluminum Tankers Trailer for Sale In Zimbabwe

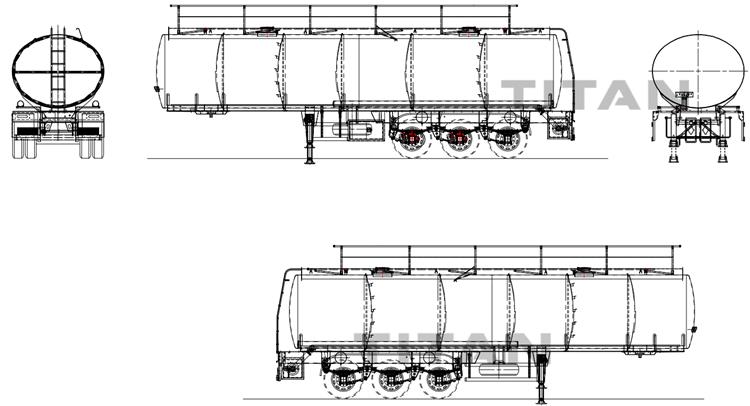

Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
Aluminum Tanker Trailers for Sale End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Aluminum Tanker Trailers for Sale Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Aluminum Tanker Trailers for Sale Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Aluminum Semi Trailers for sale Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

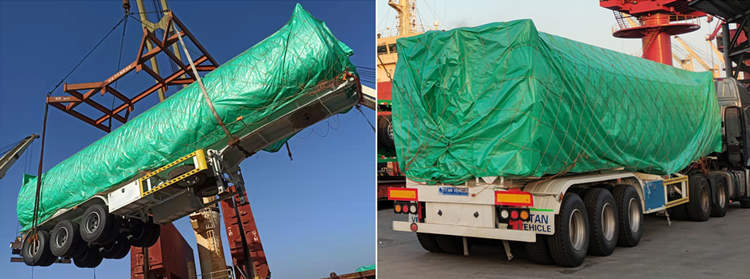

To prevent the paint of the 45000 ltrs aluminum tankers trailer for sale from being corroded by seawater, we will spray a layer of wax on the surface of the 45000 ltrs aluminum tankers trailer for sale before transportation. We will wrap all diesel engines of aluminum tanker trailers with rain cloth.
