Fuel tanker semi trailer for sale has the best design. The tank body is constantly jumping and shaking when heavy fuel tanker semi trailer is on the bumpy road, which will lead to the tank occur deformation, leakage and open welding. To resolve this problem, the fuel tanker semi trailer for sale adopts longitudinal welding technology to weld the tank.
Sandblasting for the tank, then anti-rust chassis surface, one layer of anti-corrosive primer, and two layers of top coats. Semi tanker trailer paint is polyurethane paint, it has a strong paint film, full gloss, strong adhesion, water resistance, wear resistance, and corrosion resistance. can guarantee that the paint is not removing 6~7 years.

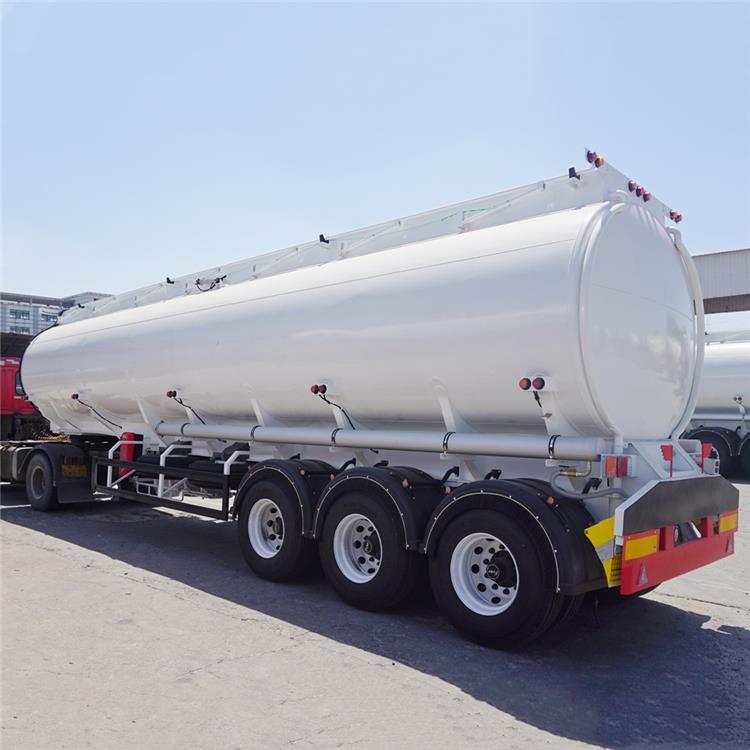

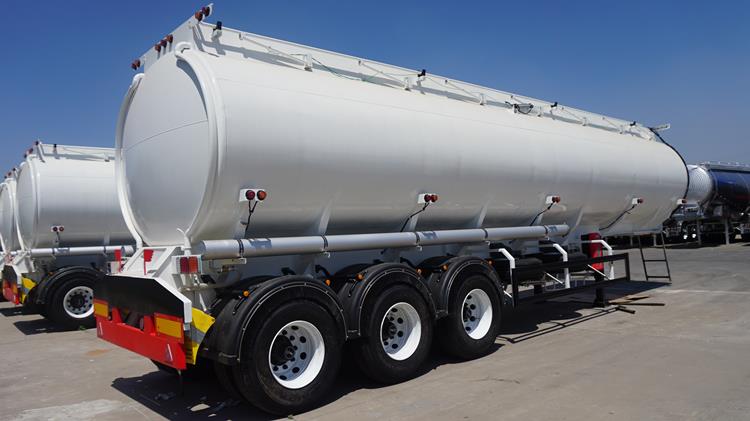

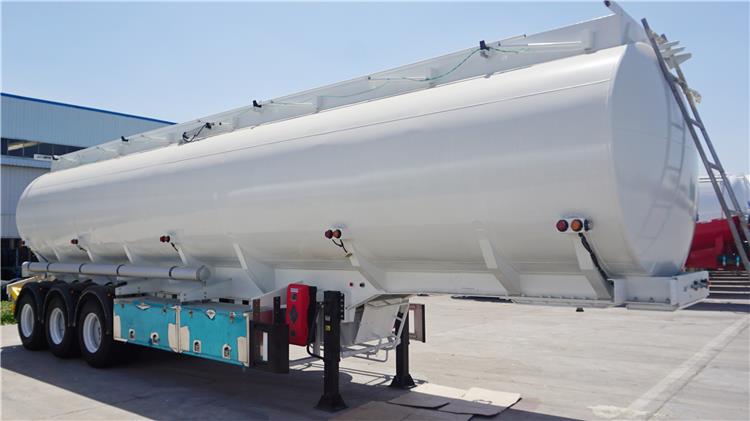

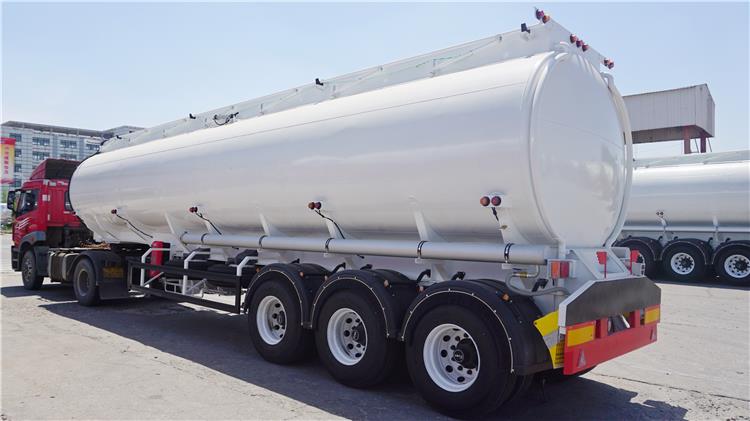

42000 Liters Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Semi Trailer
42000 Liters Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Semi Trailer
42000 Liters Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Semi Trailer
Tare Weight (semi trailer): About 8000-12800kg
Semi Tanker Trailer Total volume(l): 42000 liters
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Fuel Tanker Semi Trailer Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Fuel Tanker Semi Trailer Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Fuel Tanker Semi Trailer Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension /Germany or America type /Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Fuel Tanker Semi Trailer ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Fuel Tank Trailer Prices Accessories: One standard tool box

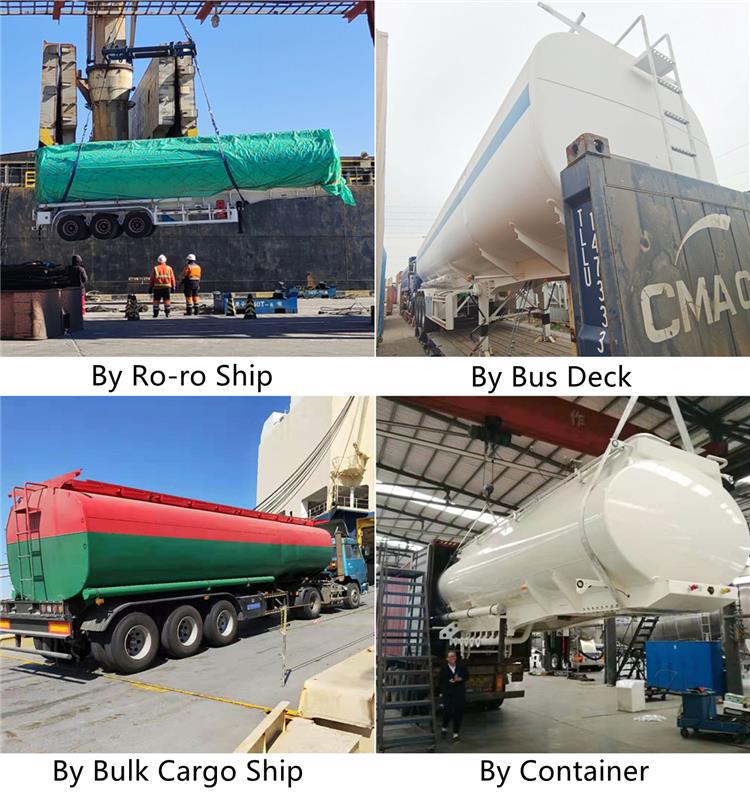

Shipping Terms: By bulk cargo, RORO or 40HQ containers
Container Shipment: 40 cubic meters of semi tanker trailer, 1-5 warehouses can be transported in 40-foot high container containers. When the 40 cubic semi tanker trailer has more than 6 warehouses or the volume of the fuel tanker semi trailer is more than 40 cubic meters, because the tank body becomes larger, a separate cabinet is required to install the axles, leaf springs and other accessories.
Bulk Shipment. This is the most common way, it can keep the completeness of the fuel tank semi trailer.
Ro- Ro shipment: The price of Ro- Ro shipment is the most expensive of all ways. It can protect the fuel tank semi trailer well and keep the completeness of the fuel tank trailer prices.
Bus Deck: It is one of the containers but it has a lengthily limit that is about 11.7 meters.
Fill out the below Email and WhatsApp. We will send you the latest quotation and catalog.
