The layout and various configurations of the f3000 shacman tractor head truck interior space follow the principle of perfect unity of form and function. The design team has carefully designed the cockpit, and the interior adopts the fashionable fabrics of passenger aircraft.
A lot of innovative technologies are used during the research and development of the f3000 shacman tractor head truck, which ensures the high reliability of the whole vehicle and reduces the failure rate.
On the basis of Shacman F3000 traction, the lightweight model is designed to reduce the self-weight of the whole vehicle and improve the market competitiveness of the product.

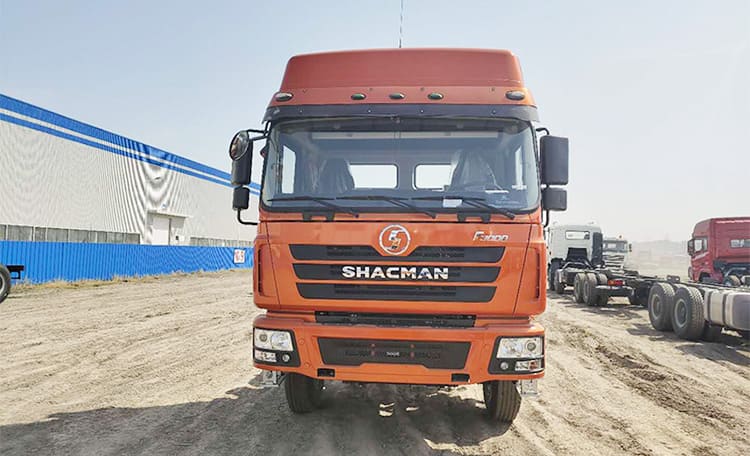

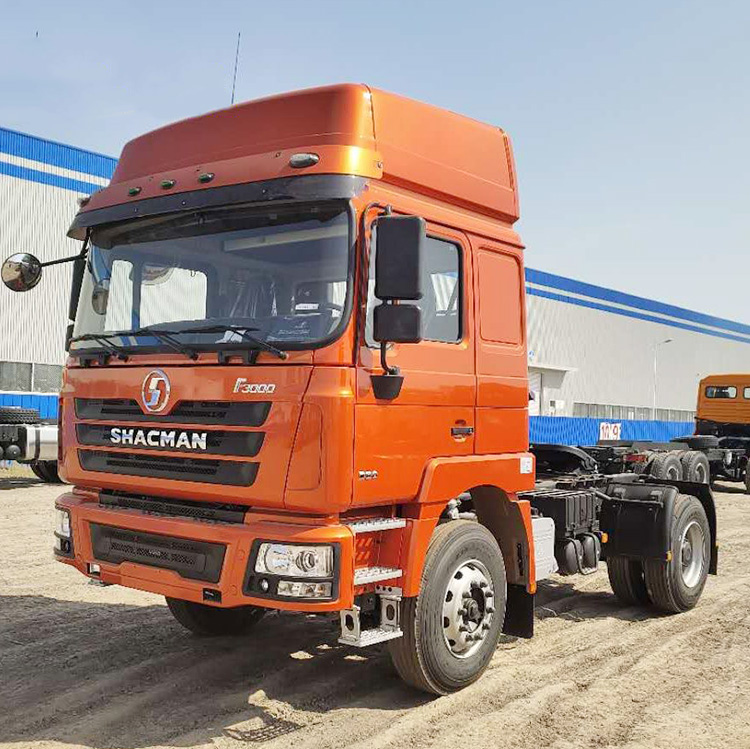

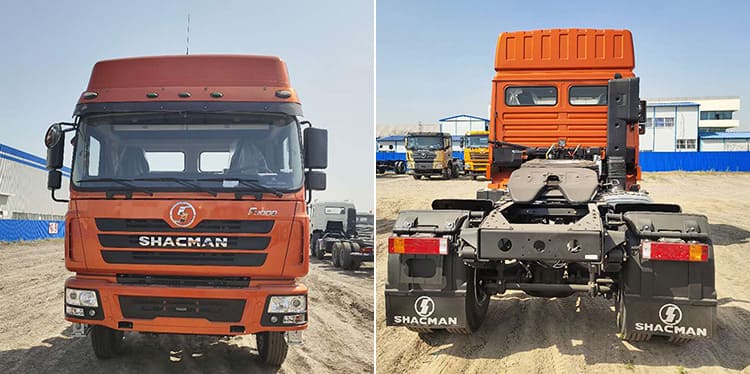

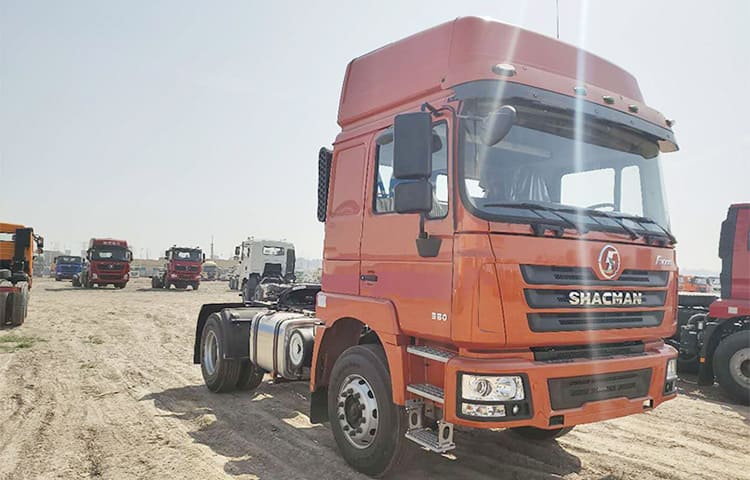

F3000 Shacman Tractor Head Truck for Sale |Shacman Truck Tractor Head
F3000 Shacman Tractor Head Truck for Sale |Shacman Truck Tractor Head
F3000 Shacman Tractor Head Truck for Sale |Shacman Truck Tractor Head
Drive model: Left or right driven hand, 4x2
Max Speed (km/h): 90
Cab: F3000 high-roof cab, double sleeper air main seat, four-point air suspension cab, electric automatic thermostatic air conditioning, electric window machine, electric flip,180Ah battery
gearbox
Gearbox Model: 10JSD140
Shift mode: manual transmission
Tire
Number of tires: 6
Tire specification: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Dimensions
Total mass(kg): 25000
LWH(mm) : 6825×2490× 4000
Front wheel track (mm): 2036
Rear wheel track (mm): 1800
Wheelbase (mm):3175+1400
Overhang(front/rear) (mm): 1525/725
Approach angle(°): 20
Departure angle(°): 66
Engine:
Engine model: WP12.336E40
Maximum power speed: 1900rpm
Maximum torque: 1800N.m
Maximum torque speed: 1000-1400rpm
Maximum horsepower: 336hp
Horsepower displacement: 11596mL
Fuel Type: Diesel
Chassis:
Frame section: frame width/height (850/300)
Number of leaf springs: 4/5
Clutch: Φ430 diaphragm
Front axle description: 7.5T MAN+
Drum rear axle description: 13T MAN double stage, speed ratio 4.266
Fuel tank capacity: 400L
