Shacman 4x2 normal unload goods by hydraulic or mechanical lifting. Price of shacman truck is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device.
Since the loading carriage can automatically tip over to a certain angle for unloading, dump truck shacman largely saves unloading time and manpower, shortens the transportation period, improves production efficiency, and cost reductions in transportation. It is a typically used special transportation shacman l3000.

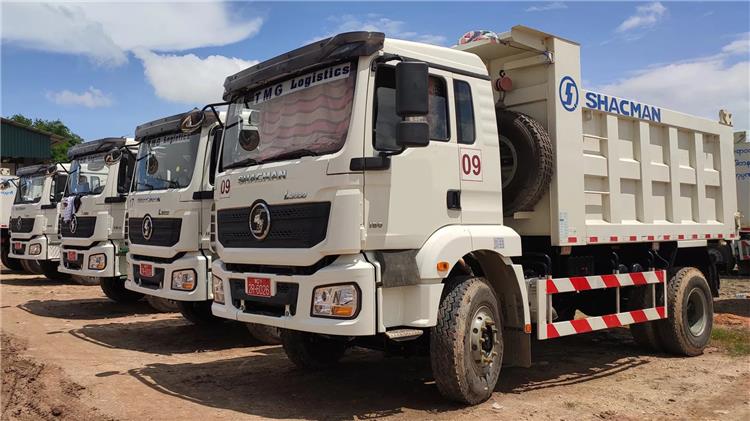

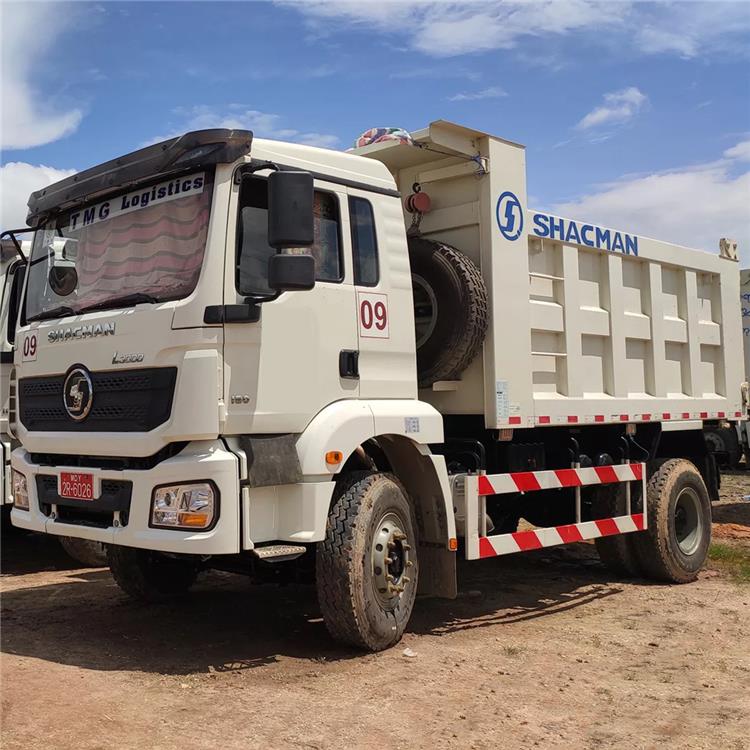

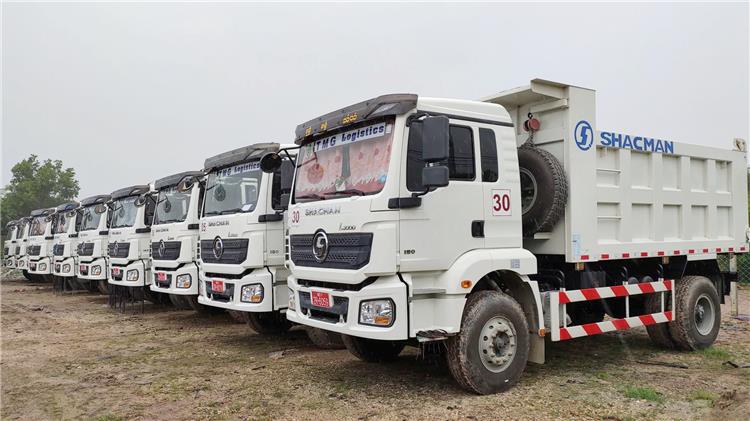

Dump Truck Shacman 4x2 | Price of Shacman L3000 Truck
Dump Truck Shacman 4x2 | Price of Shacman L3000 Truck
Brand: Dump Truck Shacman
Drive model: Left or right driven hand, 4X2
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various widths, front 940mm and rear 780mm
Rear suspension: inverted leaf spring with stabilizer
Instrument panel: Combined instrument panel
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab
Other: enlargement radiator, ABS
Shacman L3000 Engine:
Engine model: Weichai WP10.336
Power(Kw/Hp): 247/336
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1250
Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard
Stroke(mm):125/147
Displacement(L):9.726
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
Thermostat Opened at 82℃
Oil pump: Bosch
Price of Shacman Truck Steering
Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Brakes
Running brake: Dual circuiting compressed air brake
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Price of Shacman Truck Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Price of Shacman Truck Dimension (mm)
Wheel base:3200+1350
Front-wheel track:1525
Rear wheel track:2036
Front overhang: 1850
Rear overhang: 1450
Approach angle: 28°
Departure angle: 30°
Overall length: 7550
Overall width:2490
Overall height: 3450
Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)
Fuel tank(L): 300L
Weight(Kg)
GVW:25000
Front axle loading capacity:7500
Rear axle loading weight: 13000X2
Performance:
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
SHACMAN TRUCK TANZANIA LIMITED
