The 37t 40ft container side lifter trailer crane can slide forward and backward, suitable for loading and unloading of standard 20-foot and 40-foot containers. The main supporting assembly adopts well-known brands, such as JOST landing gear, WABCO valve, with reliable quality and safe operation;
The 37t 40ft container side lifter trailer crane structural parts are welded with high-strength steel plates. The whole vehicle has been stress tested to meet the bearing requirements.

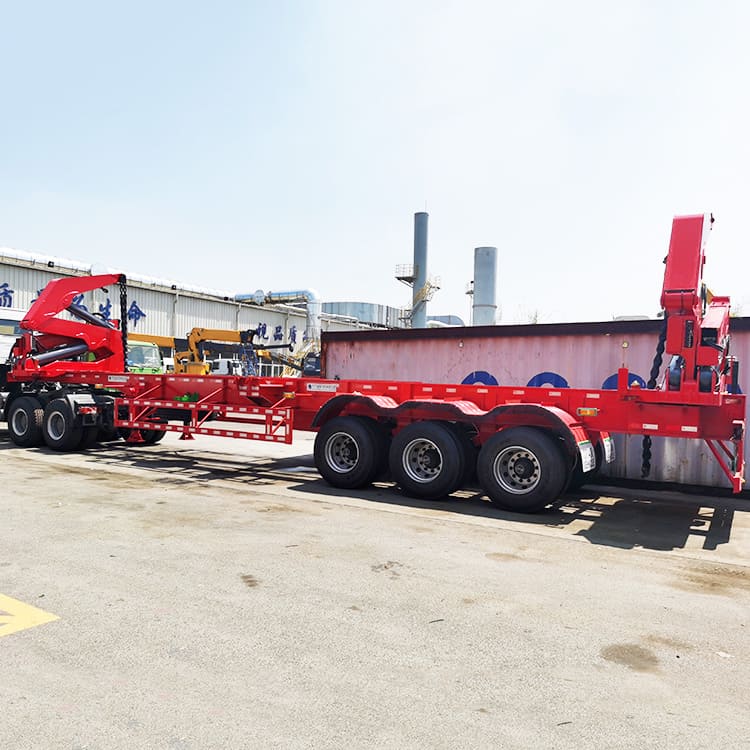

37T 40Ft Container Side Lifter Trailer for Sale in Guyana
37T 40Ft Container Side Lifter Trailer for Sale in Guyana
37T 40Ft Container Side Lifter Trailer for Sale in Guyana
37T 40Ft Container Side Lifter Trailer for Sale in Guyana
Lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Dimension(L*W*H): 14200*2500*1850mm
Max.pressure of hydraulic system: 28Mpa
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
If you are interested, please leave your message below, we will contact with you soon.
